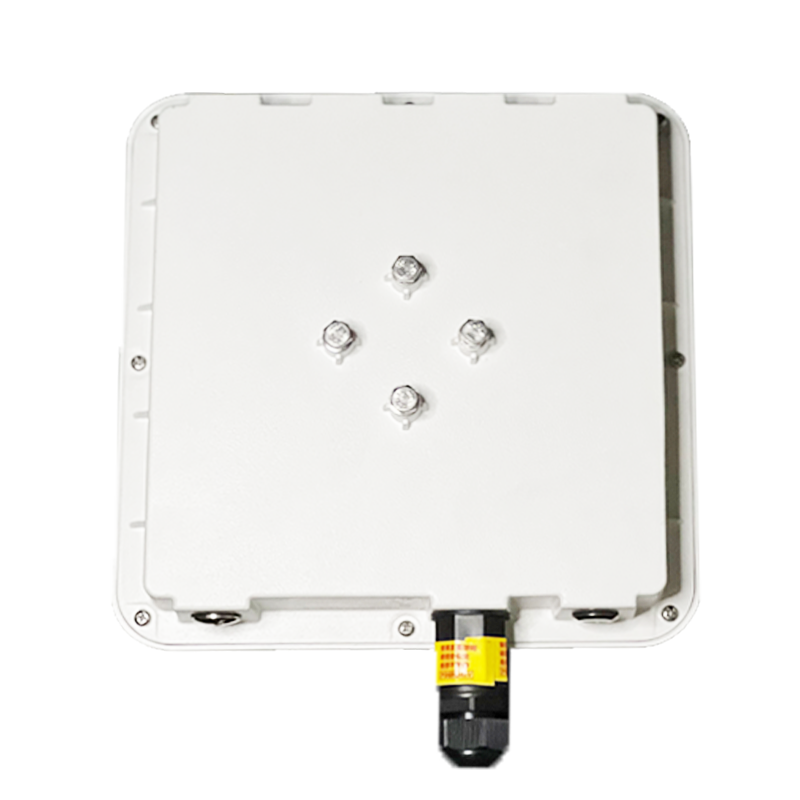

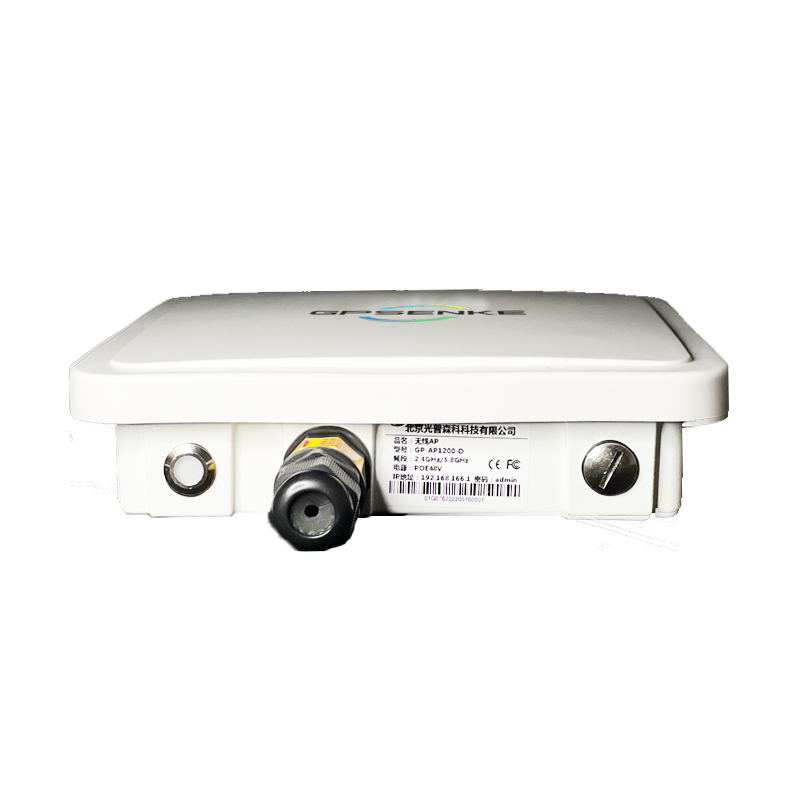

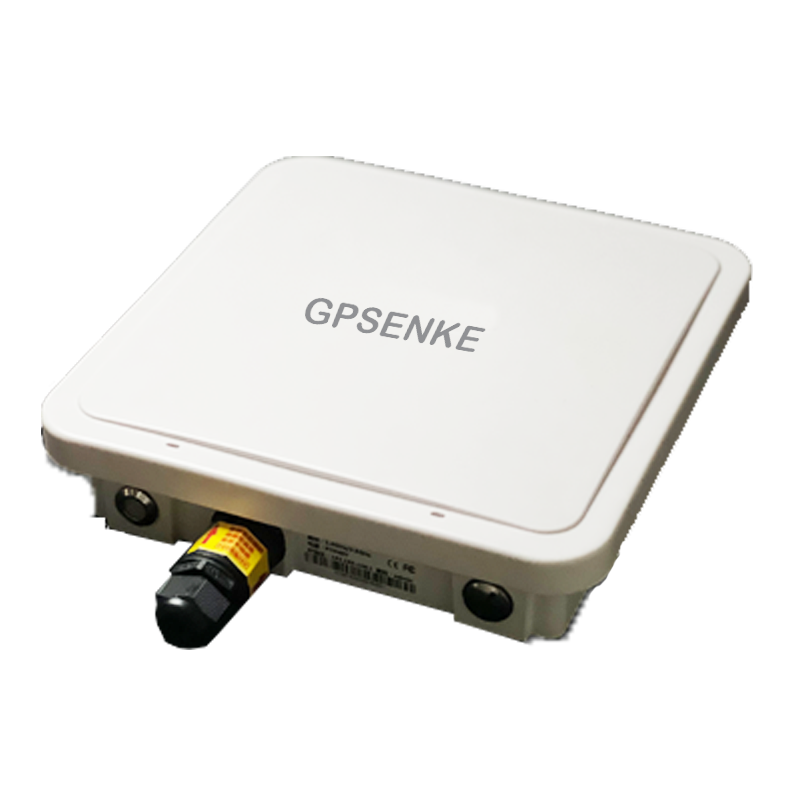

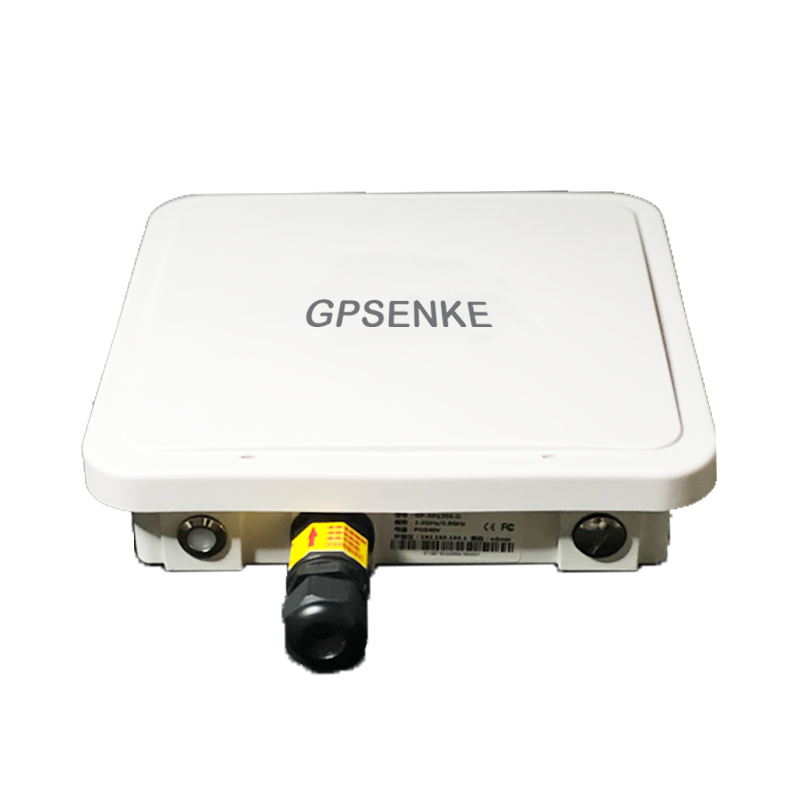

1200M Orientation Outdoor Dual-band Wireless Access Point
Product Details
Product Advantage
Product Parameter :
| GP-AP1200-D is a high-performance, high bandwidth, multi-function, outdoor industrial dual band antenna integrated wireless Access Point, which supports both 802.11b/g/n and 802.11a/n/ac standards. The equipment is based on 802.11n MIMO (multiple in and multi output) technology, and adopts 2T2R architecture. The maximum bandwidth of dual frequency concurrent operation can reach up to 1167 Mbps, can be widely used in medical, underground pipe gallery, school, park, scenic area, playground and other outdoor field wireless network coverage, fully compatible with 802.11 a / B / g/ N / AC protocol client equipment access. |
| Standard&Protocol | IEEE 802.3 for 10Base-T |
| IEEE 802.3u for 100Base-TX | |
| IEEE 802.3ab for 1000Base-T | |
| IEEE802.11b/g/n/a/ac for WLAN | |
| IEEE802.11i for wireless security | |
| IEEE802.11r for fast roaming | |
| IEEE802.3af/at for PoE | |
| Operating Mode | Route, AP, bridge, client |
| Network Settings | Intranet setting, outer network setting, wireless setting, roaming setting, wireless probe |
| Firewall(route mode) | IP filtering, MAC filtering, URL filtering, port forwarding, ARP binding, DMZ setting |
| Radio Frequency | 802.11b/g/n: 2.412GHz~2.4835GHz |
| 802.11ac/n/a: 5.18GHz~5.825GHz | |
| RF power output: 20dBm | |
| Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM | |
| Receiving Sensitivity | 802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7 |
| 802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7 | |
| 802.11g/a: -91dBm@6Mbps, -72dBm@54Mbps | |
| 802.11b: -93dBm@1Mbps, -87dBm@11Mbps | |
| 802.11ac： | |
| -84dBm@MCS0, -59dBm@MCS9 | |
| Transmitting Power | 802.11n_HT40: 20dBm@MCS0, 20dBm@MCS7 |
| 802.11n_HT20: 20dBm@MCS0, 20dBm@MCS7 | |
| 802.11g/a: 20dBm@6Mbps, 20dBm@54Mbps | |
| 802.11b: 20dBm@1Mbps, 20dBm@11Mbps | |
| 802.11ac: 20dBm@MCS0, 20dBm@MCS9 | |
| Interface | WAN port: 1 10/100/1000Base-T(X) RJ45port, supports POE 48VDC input power supply |
| LAN port: 1 10/100/1000Base-T(X) RJ45 port, supports PoE 48VDC power supply input | |
| Antenna: 2 2.4G N-type (Female) ports | |
| 2 5.8G N-type (Female) ports | |
| LED Indicator | 5.8G signal indicator, 2.4G signal indicator, |
| network bridge indicator, running indicator, power supply indicator | |
| Power Requirement | POE 48VDC: support IEEE802.3af/at standard |
| 12~48VDC (optional): support non-polarity, | |
| anti-reverse connection and 2A overcurrent protection | |
| Power Consumption | No-load: ＜4.51W@12VDC |
| Full-load: ＜7.90W@12VDC | |
| Environmental Limit | Operating temperature: -40~75℃ |
| Storage temperature: -40~85℃ | |
| Relative humidity: 5%～95%(no condensation) | |
| Physical Characteristic | Housing: IP67 protection*, metal |
| Installation: Wall mounting or pole mounting | |
| Weight: 3.19KG | |
| Dimension (L × W × H): 210mm×210mm×58 | |
| Industrial Standard | IEC61000-4-2 (ESD, electronic static discharge), Level 4 |
| Air discharge: ±15kV | |
| Contact discharge: ±8kV | |
| IEC61000-4-4 (EFT, electrical fast transient ), Level 4 | |
| Power supply: ±4kV | |
| Signal: ±2kV | |
| IEC61000-4-5 (Surge), Level 4 | |
| Power supply: common mode±4kV, differential mode±2kV | |
| Ethernet interface: ±4kV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| Certification | CE, FCC, RoHS |
| Warranty | 3 years |
