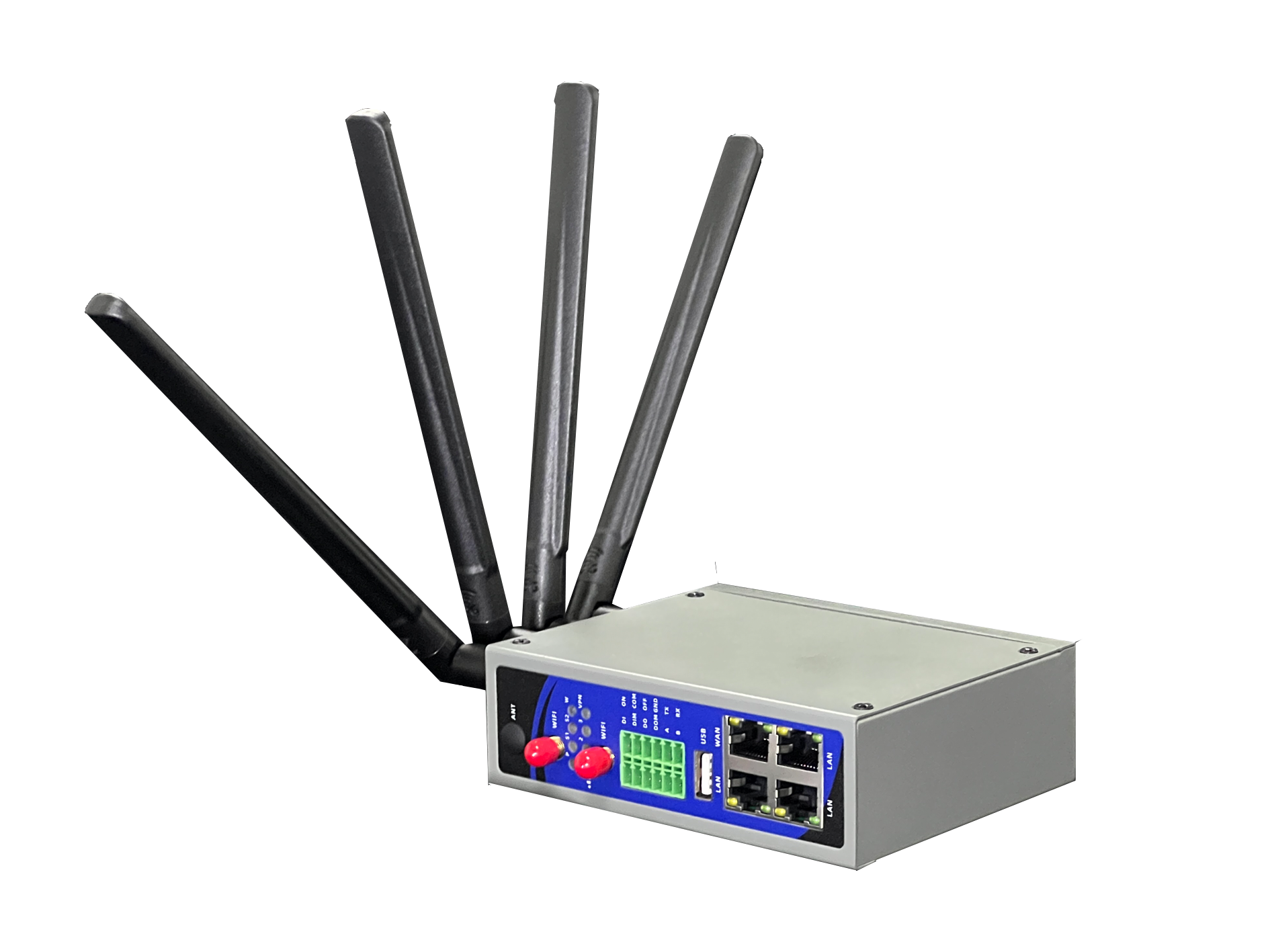

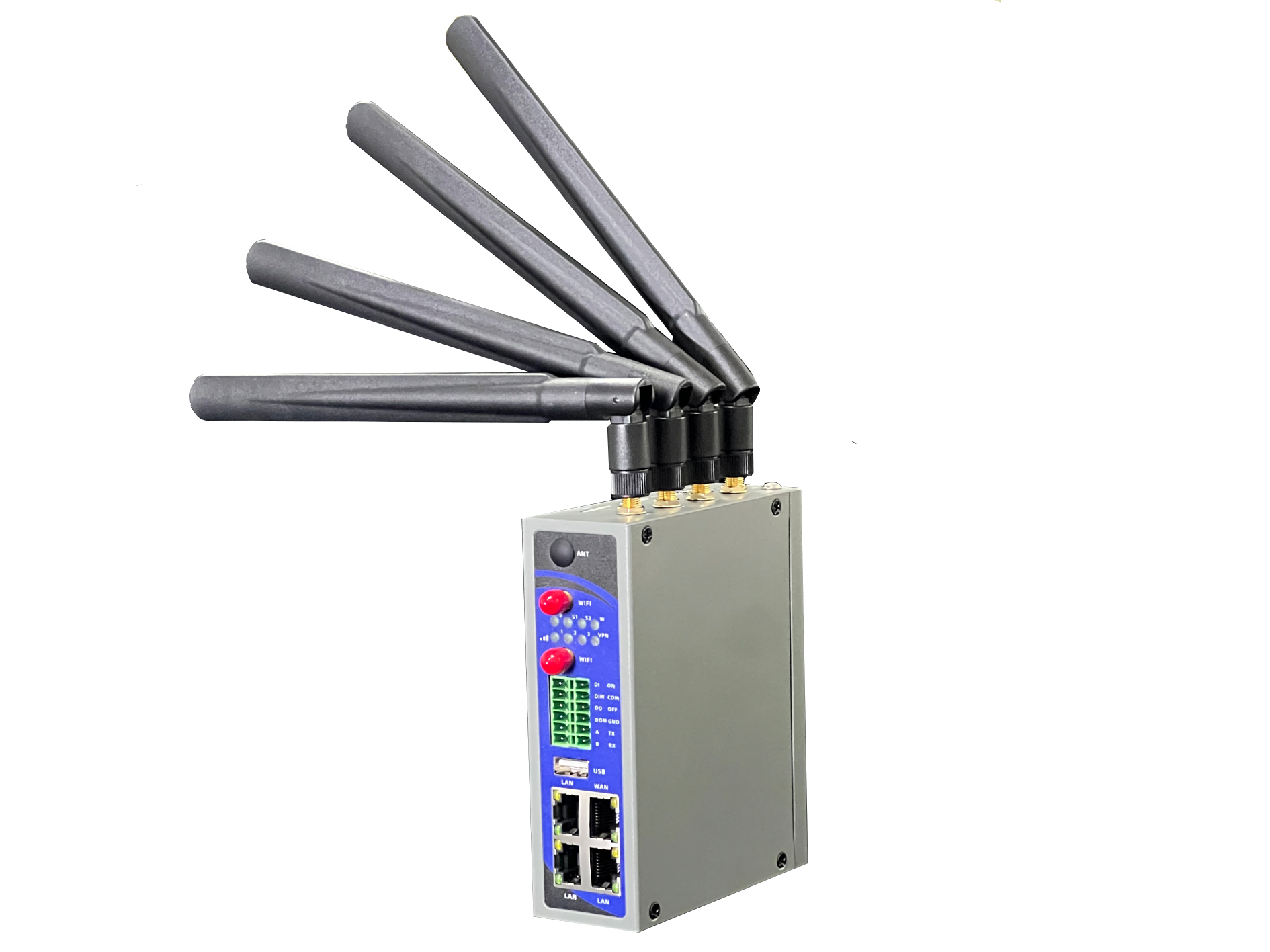

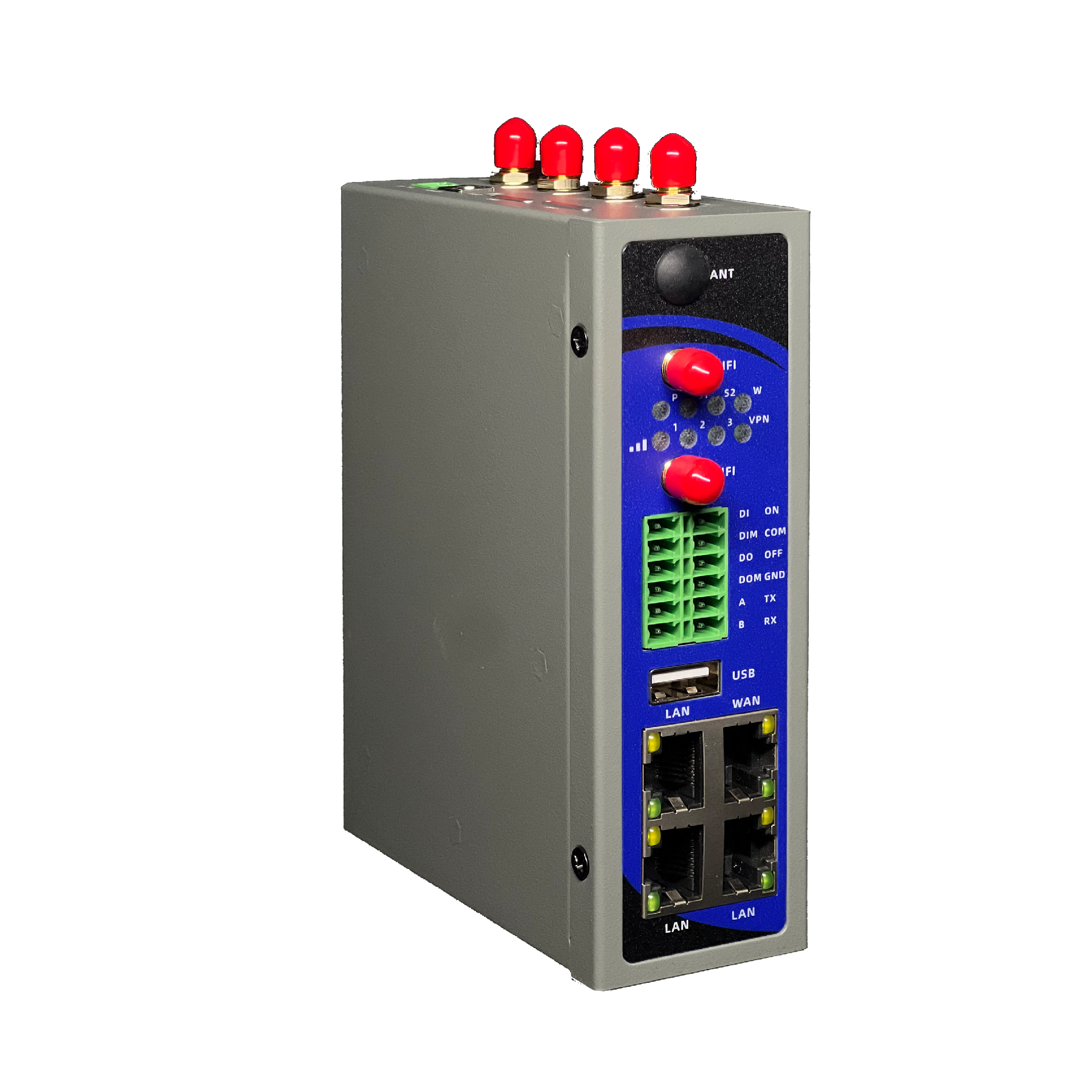

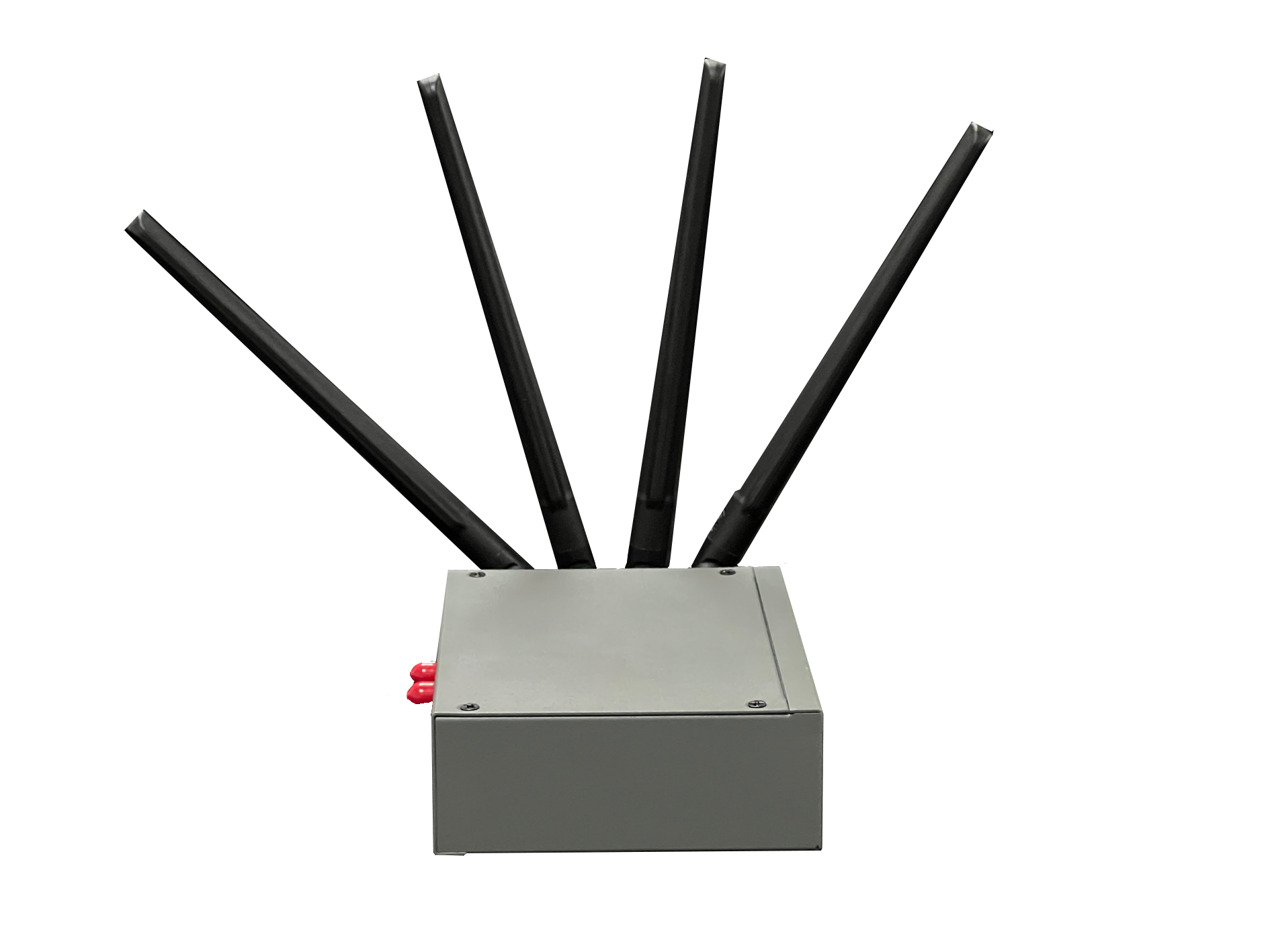

5G 4-port Single-SIM Router CPE
Product Details
Product Advantage
Product Parameter :
| GP-R640 5G industrial router adopts MTK solution dual-core four-thread 880Mhz main frequency design.It supports 5G, WiFi6, wired network and other access methods. It has an open architecture design, provides fast and flexible customization; can realize local real-time data Analysis and intelligent processing. It has industrial standard design, wide temperature, wide voltage, dustproof, strong electromagnetic interference resistance, multiple hardware protection, with external watchdog circuit, stable operation even in harsh environments, It can adapt to different industry scenarios and provide users with wireless data transmission functions by using public wireless networks. Mainly in areas with harsher environments and provide a variety of network support. Now it has been widely used in the M2M industry in the Internet of Things industry chain, such as smart grid, intelligent transportation, finance, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical care, telemetry, agriculture , forestry, water affairs, coal mining, petrochemical and other fields. |
| Hardware performance | |
| CPU | Dual-core four-thread 880 M hz main frequency |
| Memory | Onboard SMD DDR3 128 MB expandable to 512 MB |
| FLASH | Nor Flash 128 Mb |
| WiFi | 802.11.ax (Wi-Fi 6), the highest rate can reach 1800M bps, support 2.4G/5.8G dual-band |
| Network support | Industrial-grade 5G full Netcom module, or support seven-mode full Netcom (4G module) |
| System time | Time synchronization adopts NTP technology and built-in RTC |
| 5G module | |
| Band support | 5G/4G/3G |
| Theoretical bandwidth | NR SA: 1.9Gbps(DL)/750Mbps(UL) |
| NR ENDC: 2Gbps(DL)/340Mbps(UL) | |
| LTE: 500Mbps (DL)/150Mbps (UL) | |
| WCDMA: 42Mbps (DL)/11Mbps | |
| The above data are theoretical values only, and the actual network speed is limited by the local network environment | |
| 5G module quantity | 1 built-in 5G module (1 external drawer-type SIM card slot) |

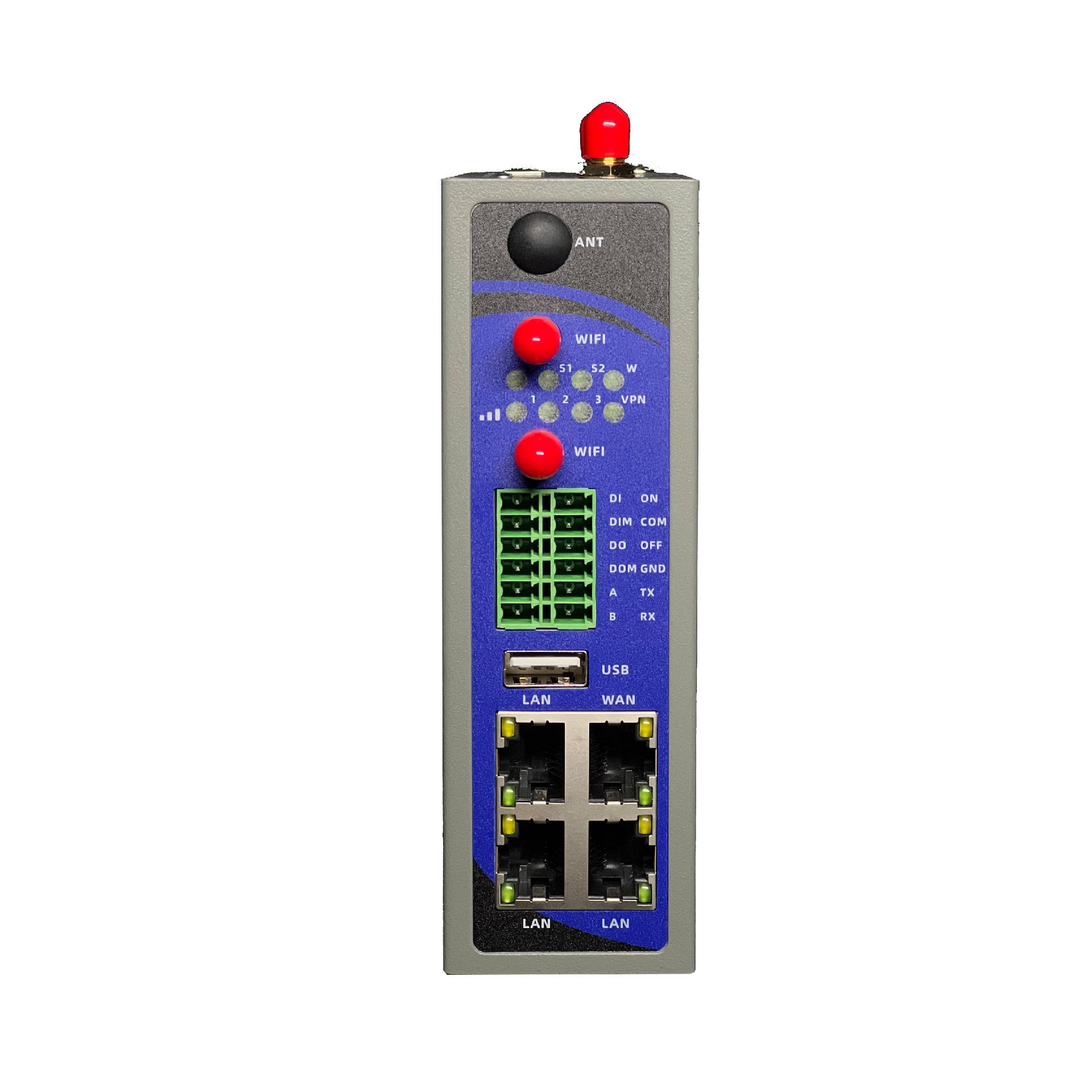

| Product interface | |
| WAN port | 1 WAN port |
| LAN port | 3 LAN ports (10M/100M/1000M adaptive MDI/MDIX ports) |
| SIM card interface | 1 (drawer card holder, support 1.8V/3V SIM/UIM card) |
| UART | 1 channel RS 485, 1 channel RS 232 |
| Reset | 1 (reset button) |

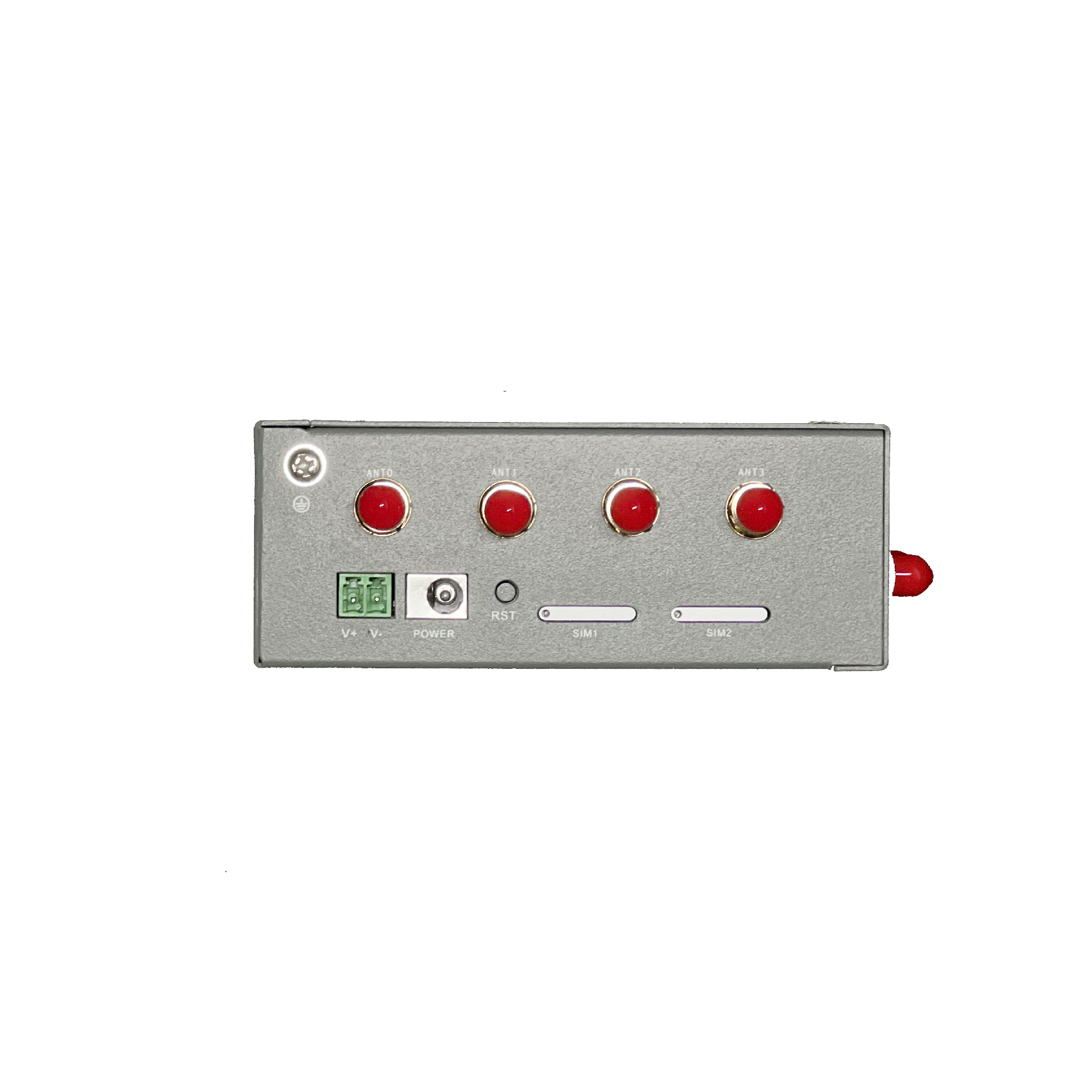

| Antenna interface | 4 (4G/5G antenna, impedance 50 ohms, SMA female inner hole interface) |
| 2 (2.4G WIFI antenna, impedance 50 ohms, SMA inner needle interface) | |
| 2 ( 5.8G _WIFI antenna, impedance 50 ohms, SMA inner needle interface) | |
| Power interface | 1 ( DC 5.5* 2.1/2.5 socket) |
| Communication Interface | 1 ( 7 -pin 3.81mm pitch industrial terminal block) |
| Console port | 1 built-in |
| indicator light | 4 (1 5 lights, 1 SYS lights, 2 WiFi lights ) |
| Software function | |
| Internet access | Support APN VPDN |
| Access authentication | Support CHAP/PAP authentication |
| Network mode | GSM/GPRS/EDGE,LIMTS/HSPA+/EVDO/TD-SCDMA/TD-LTE/FDD LTE/5G NR |
| LAN protocol | Support ARP,Ethernet |
| WAN protocol | Support static IP, DHCP, PPPoE, PPP |
| IP application | Support Ping, Trace, DHCP Server, DHCP Relay, |
| DHCP Client, DNS relay, DDNS, Telnet | |
| IP routing | Support routing |
| NAT function | Support for Network Address Translation |
| Industrial agreement | Support IEC101/104 protocol, support environmental protection 212 protocol, Support MQTT, MUDBUS and other industrial protocols |
| Equipment Security and Reliability | |
| Safety and Reliability | Power supply reverse phase protection, overvoltage protection, overcurrent protection; |
| Ethernet interface built-in 1.5KV electromagnetic isolation protection;RS232/RS485 interface built-in 15KV ESD protection; | |
| SIM/UIM card interface built-in 15KV ESD protection | |
| backup function | Support wired, dual 5G and three-way backup for each other |
| Link online monitoring | Send heartbeat packet detection, automatic connection when disconnected |
| Embedded Watchdog | Equipment operation self-inspection technology |
| Equipment operation fault self-repair | |
| Firewall | Stateful Packet Inspection (SPI), Prevent Denial of Service (DoS) Attacks Filter Multicast/Ping Packets, |
| Access Control List (ACL)Content URL filtering, port mapping, virtual IP mapping, IP-MAC binding | |
| Data Security | IPsec VPN /L2TP/PPTP/GRE/OPEN VPN/CA certificate |
| Degree of protection | IP 45 |
| certified | Conform to CCC, Rohs |
| MTBF | ≥100,000 hours |
| Intelligent | |
| Integrated DTU function | Support TCP, UDP transparent transmission mode, TCP Server mode, Support Modbus RTU to Modbus TCP bridge, |
| Support DCUDP, DCTCP mode | |
| After-sale maintenance | |
| Warranty | 2 years (non-human damage and force majeure factors: 1 year free maintenance + 1 year paid maintenance service) |
| Network management | |
| QOS management | Support bandwidth limit, IP speed limit |
| Configuration method | Support telnet, web, ssh and console configuration methods |
| Upgrade method | Support web upgrade, support FOTA |
| Log function | Support local system log, remote log, serial port output log. |
| Save important logs when power off | |
| SMS function | Status query, configuration, restart |
| Dial on demand | On-demand dialing, data activation, SMS activation |
| Network management | Support STAR Device Manager network management platform, batch management |
| Simple network management | Support SNMP v1/v2c/v3, support SNMP TRAP function |
| Traffic management | Support traffic threshold setting, support traffic statistics and traffic alarm function |
| Alarm function | Support alarms such as system restart, LAN port online and offline, traffic alarm, SIM card failure, etc. |
| Maintenance tool | Ping, traceroute, internet speed test |
| Status query | System status, modem status, network connection status, routing status |
