5G 5-port Single-SIM Router CPE
Product Details
Product Advantage
Product Parameter :
| GP-R650 5G industrial router adopts Qualcomm ARM-A53 quad-core 1.80Mhz master design. It supports 5G, WiFi6, wired network and other access methods. It has an open architecture design, provides fast and flexible customization; can realize local real-time data Analysis and intelligent processing. It has industrial standard design, wide temperature, wide voltage, dustproof, strong electromagnetic interference resistance, multiple hardware protection, with external watchdog circuit, stable operation even in harsh environments, It can adapt to different industry scenarios and provide users with wireless data transmission functions by using public wireless networks. Mainly in areas with harsher environments and provide a variety of network support. Now it has been widely used in the M2M industry in the Internet of Things industry chain, such as smart grid, intelligent transportation, finance, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical care, telemetry, agriculture , forestry, water affairs, coal mining, petrochemical and other fields. |
| Hardware performance | |
| CPU | Qualcomm IPQ6000 ARM -A53 quad-core 1.80 M hz main frequency |
| Memory | Onboard SMD DDR 41 GB |
| EMMC | 4 GB (default) can be customized 1 6 GB -128GB |
| N and Flash | 2Gb ( 16M x 16 ) |
| Nor FLASH | 128Mb ( 16M x 8) |
| WiFi | 802.11.ax (Wi-Fi 6), the highest rate can reach 1800M bps |
| Support 2.4G/5.8G dual-band | |
| Network support | Support China Unicom/Telecom/China Mobile and other 3G/4G/5G networks |
| Support industrial-grade 5G 3-network module/7-mode 3-network | |
| (4G module, can replace GSM 5G module) | |
| System time | Time synchronization using NTP technology |
| Product interface | |
| WAN port | 1 WAN port |
| LAN port | 4 LAN ports (10M/100M/1000M adaptive MDI/MDIX ports) |
| SIM card interface | 1 (drawer card holder, support 1.8V/3V SIM/UIM card) |
| Module interface | 1 ( 5G / 4G module ) |
| UART | 1 channel RS 485, 1 channel RS 232 |
| Reset | 1 (reset button) |
| Antenna interface | 4 5G antennas (4G/5G antenna, impedance 50 ohms, SMA female inner hole interface) |
| 2.4GWIFI 2 ( 2.4G WIFI antenna, impedance 50 ohms, SMA inner needle interface) | |
| 5.8GWIFI 2 ( 5.8G _WIFI antenna, impedance 50 ohms, SMA inner needle interface) | |
| Power interface | 1 (DC connector) |
| Console port | 1 built-in |
| M.2 interface _ | 1 5G module interface |
| WiFi performance | |
| Max number of user access | 255 |
| Protocol standard | IEEE 802.11b/g/n/ac/wifi6ax |
| Antenna support | 5.8GHz: 2X2/80Mhz2.4GHz: 2*2/40Mhz |
| WIFI frequency band | 2.412GHz-2.47GHz and 5.15GHz-5.85GHz dual frequency synchronization |
| WIFI speed | Onboard wifi 2.4GHz up to 574Mbps |
| Onboard wifi5.8GHz up to 1200Mbps | |
| Output Power | Single channel dual 2.4G WIFI, the maximum output power is about 0.8Watts |
| Single channel dual 5.8GWIFI, the highest output power is about 1.2Watts | |
| Receiver sensitivity | @802.11AX condition, 2.4G receive gain 14DBi |
| @80.11AX condition, 5.8G receive gain 13DBi | |
| Transmission distance | 100M (the actual transmission distance depends on the environment) |
| Security features | Open system, shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| Operating mode | AP, Client working mode |
| WIFI software function | Modify SSID, channel switch, support AP mode (relay mode) |
| 5G module | |
| Band support | 5G/4G/3G |
| Theoretical bandwidth | NR SA: 1.9Gbps(DL)/750Mbps(UL) |
| NR ENDC: 2Gbps(DL)/340Mbps(UL) | |
| LTE: 500Mbps (DL)/150Mbps (UL) | |
| WCDMA: 42Mbps (DL)/11Mbps | |
| The above data are theoretical values only, and the actual network speed is limited by the local network environment | |
| 5G module quantity | 1 built-in 5G module (1 external drawer-type SIM card slot) |
| Power supply and power consumption | |
| Power supply | External power adapter (12V 2A) |
| Operating Voltage | Power input DC 12-36V |
| Working power consumption | 450-700mA@12V DC |
| Standby power consumption | 300-450mA@12V DC |
| Physical characteristics | |
| Operating temperature | Qualcomm Chipset 5G solution-40 ～+ 85ºC （ -40 ～+ 175 ℉ ） |
| Unisoc China Chipset 5G Solution-40 ～+75ºC（ -40 ～ +167 ℉ ） | |
| Storage temperature | -40～+ 85ºC （-40～+185 ℉ ） |
| Working humidity | 5%~95%(no condensation) |
| Equipment ventilation | Natural heat dissipation, no noise |
| Chassis material | All Metal Chassis |

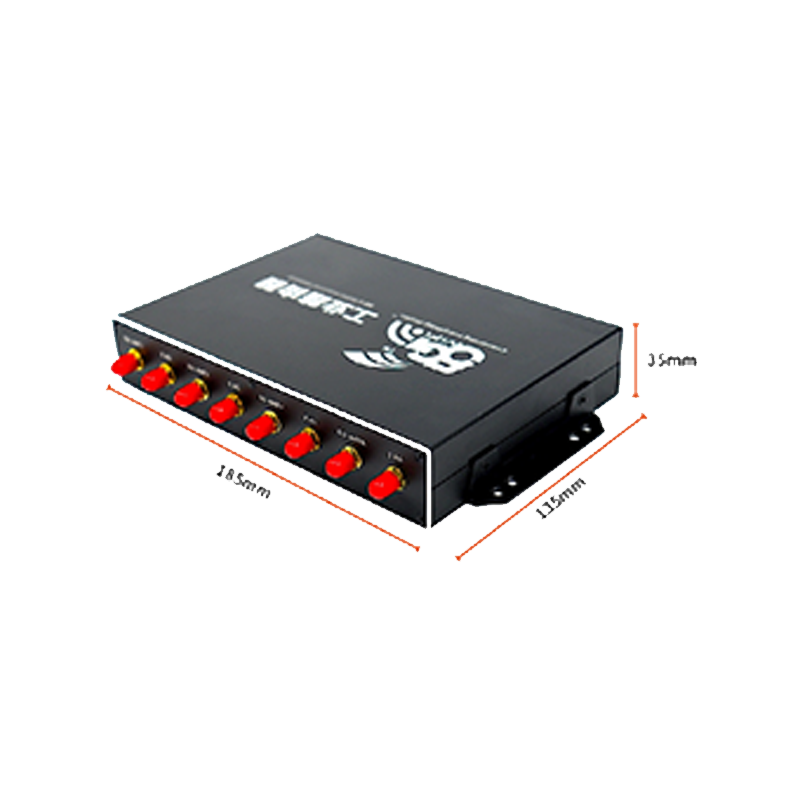

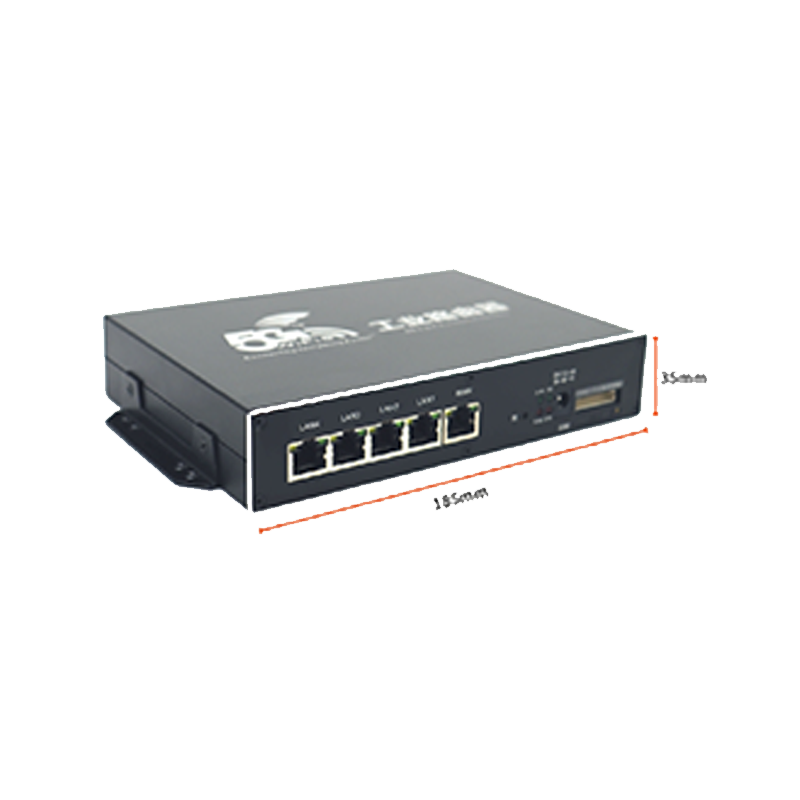

| Dimensions | L*W*H:L*S*H: 185 mm x1 35 mm x 35 mm (excluding antenna and mounting parts) |
| Product weight | Net weight: 0.7KG |
| (not including antenna and mounting parts, single box size 23*16*6CM) | |
| Gross weight: 1.1KG (with accessories and packing box, 10 sets of 12kg in the whole box, outer box size 45*35*30CM) | |
| Installation method | Desktop flat, guide rail installation, wall-mounted |
| Software function | |
| Internet access | Support APN VPDN |
| Access authentication | Support CHAP/PAP authentication |
| Network mode | GSM/GPRS/EDGE,LIMTS/HSPA+/EVDO/TD-SCDMA/TD-LTE/FDD LTE/5G NR |
| LAN protocol | Support ARP,Ethernet |
| WAN protocol | Support static IP, DHCP, PPPoE, PPP |
| IP application | Support Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
| IP routing | support routing |
| NAT function | Support for Network Address Translation |
| Industrial agreement | Support IEC101/104 protocol |
| Support environmental protection 212 protocol | |
| Support MQTT, MUDBUS and other industrial protocols | |
| Equipment Security and Reliability | |
| Safety and Reliability | Power supply reverse phase protection, overvoltage protection, overcurrent protection; Ethernet interface built-in 1.5KV electromagnetic isolation protection;RS232/RS485 interface built-in 15KV ESD protection; SIM/UIM card interface built-in 15KV ESD protection |
| Backup function | Support wired, dual 5G and three-way backup for each other |
| Link online monitoring | Send heartbeat packet detection, automatic connection when disconnected |
