Product Details

Product Advantage

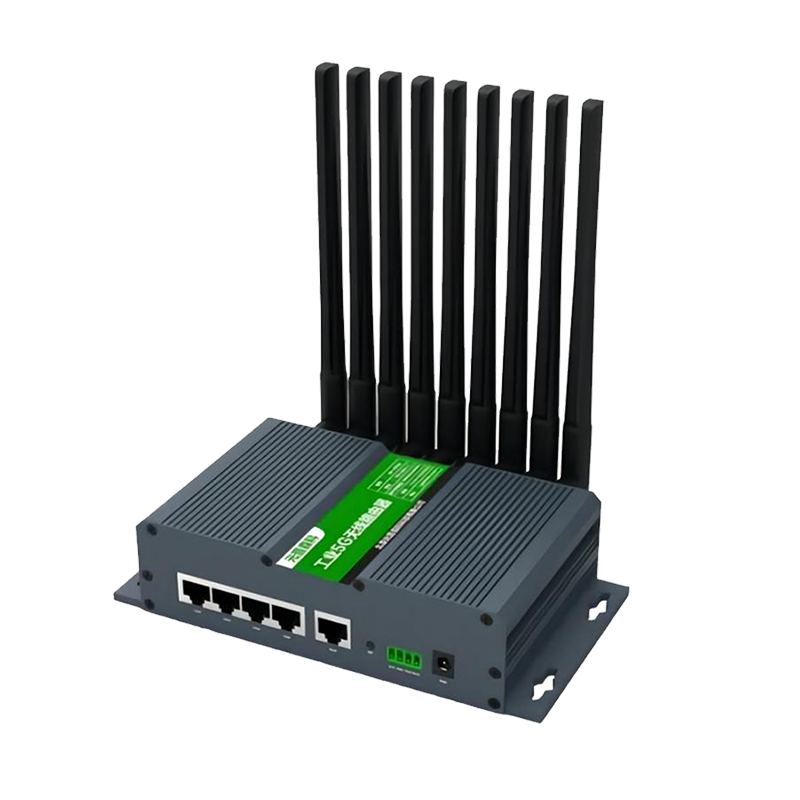

GP-R650 series industrial grade 5g router is a new generation of wireless router independently developed by our company. It integrates 5g / 4G / 3G, 2.4G and 5.8G WiFi, routing, switching, network management, VPN, firewall, security and other technologies, and provides static routing / dynamic routing, 5g / 4G / 3G dialing, QoS, industrial serial communication and other software features New high cost performance, full function edge network terminal equipment.

Product Parameter :

Industrial Design

High performance industrial 5g module is adopted
High performance industrial dual core processor is adopted
Cold rolled steel shell with sheet metal has good heat dissipation.
Power supply: from + 7.5V to + 32V DC
Protection grade: IP40 (can handle to ip51)

Stable and reliable

The software and hardware watchdog and multi-level link detection mechanism are adopted to ensure the stable and reliable operation of the equipment
Multiple device self-test mechanism to ensure smooth link and alarm
ESD protection of each interface to prevent electrostatic impact
With wireless network signal indicator light, three levels of display field signal strength

Network characteristics

Support port traffic detection
Support link real-time monitoring
Support multiple VPN protocols (PPTP, L2TP, IPSec, VPN)
Support serial port simple DTU function

Remote management

- Remote parameter configuration
- Remote parameter backup
- Remote restart and log query
- Remote device upgrade
- Equipment online monitoring
- Support WiFi mandatory advertising push function
- Support GPS / Beidou Positioning [optional]
- Support internal storage expansion, 8gb-64gb [optional]

Hardware performance
CPU	800MHz dual core
5G band	NR(n41/n77/n78/n79) FDD-LTE(B1/B3/B5/B7/B8/B20/B28) TDD-LTE(B34/B38/B39/B40/B41) HSPA(850/900/1900/2100MHz) ECDO(800MHz) TD-Scdma(B34/B39)
5g theoretical bandwidth	5g sub-6g: uplink 300mbps / downlink 4gbps LTE cat20: upstream 150Mbps / downlink 2.4gbps
Transmitting power	23dBm+/-1dB@25ºC
Receiving sensitivity	-108dBm@10MHzQPSK
Software function
Working mode	Wired / wireless / compatible
WIFI	AP mode, client mode
route	Support PPPoE / static IP / dynamic IP
Serial port	Support DTU transmission mode Support tcpserve / tcpclient UDP support Support Modbus Protocol
VPN	Support PPTP, L2TP, IPSec and other protocols
device management	Local configuration, remote cloud configuration
Interface and power supply
communication interface	Support RS232 / 485 communication
WAN	1 WAN port, adaptive MDI / mdix, built-in electromagnetic isolation protection
LAN	4 LAN port, adaptive MDI / mdix, built-in electromagnetic isolation protection
indicator light	With "PWR", "Wan", "Lan", "net" four indicators
Antenna interface	1 standard SMA antenna interface (3G / 4G), characteristic impedance 50 Ω; 1 Aux / GPS reserved antenna interface
SIM/UIM Interface	3V / SIM card with 3V interface and automatic detection
Reset	By pressing this key for 10 seconds, the parameter configuration of the device can be restored to the factory value
power supply	power supply
Supply voltage	DC5V ~ DC36V (standard configuration DC12V / 1.5A), built-in power instantaneous overvoltage protection
Environmental and physical performance
working temperature	-40 ~ 80ºC
Storage temperature	-45 ~ 85ºC
Humidity	5%~ 95%(No condensation)
External dimension	153mm×103mm×25.5mm(length × width × height)
Installation and fixation	Fixed structure side installation mode
Fixed structure side installation mode	IP40 protection level, electromagnetic shielding, wind protection, sun protection, shock proof and heat dissipation design
