1775Mbps Coal-Mining Access Point Intrinsically-Safe


Product Details

Product Advantage

    Intrinsic Safety ( I.S. ) Power-Protection Design
    Support 1*Gigabit RJ45 Ethernet Port + 1*Gigabit SFP Fiber Port+1*RS232
    Support 802.11 ax standard with 2-Stream, speed up to 1775Mbps
    Support OFDMA (Orthogonal Frequency Division Multiple Access)
    Support 1024-QAM to increase capacity, reduce latency, and improve Wi-Fi efficiency
    Support 4×4 MU-MIMO
    Suppport BSS(Basic Service Set) Color
    Support TWT (Target Wake Time)
    Support IPv4/IPv6
    Support Open System, Shared Key, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
    Support DC12V & PoE48v Power Supply

Product Parameter :

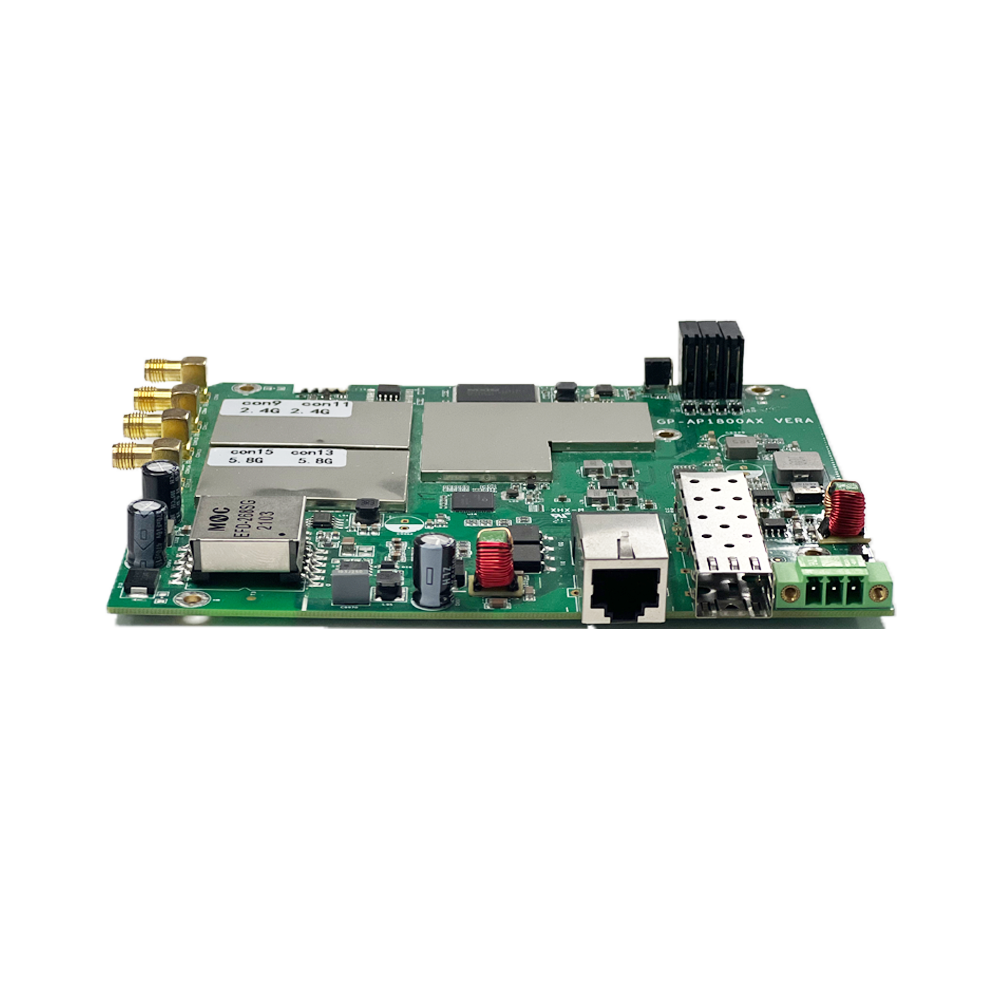

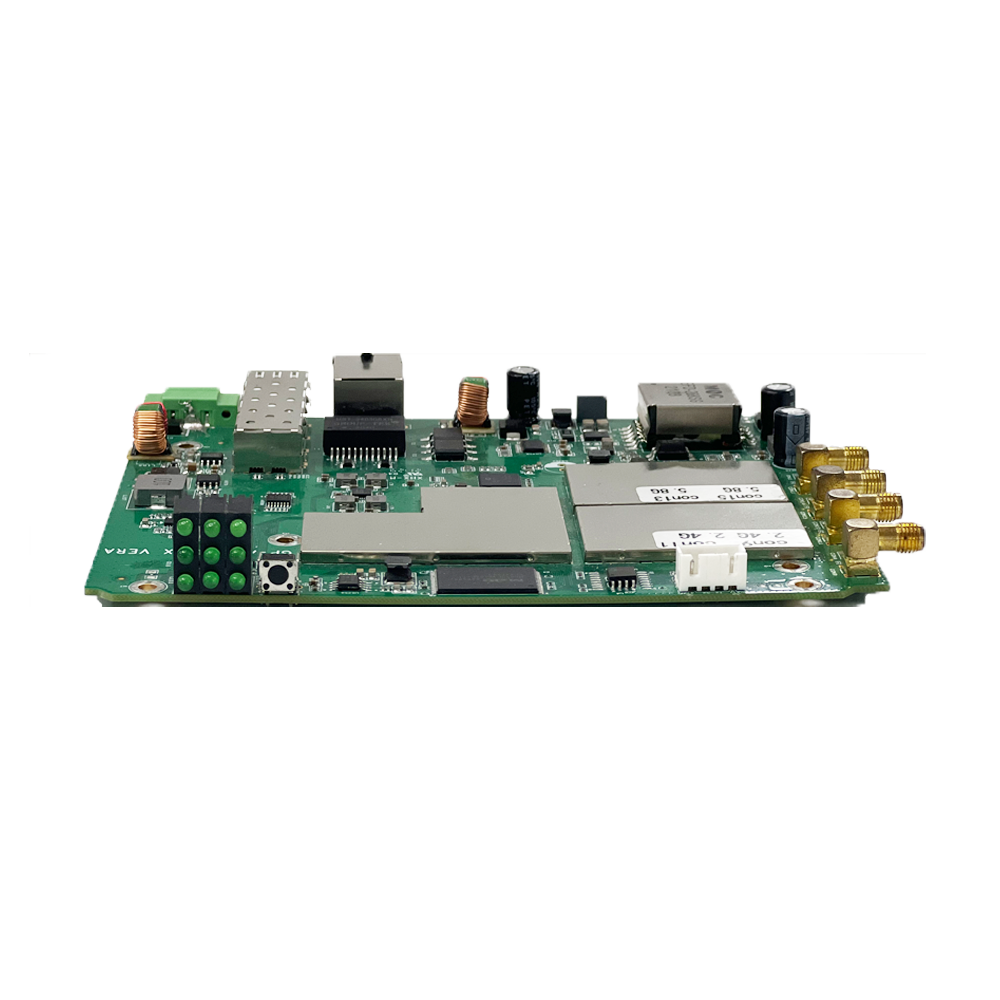

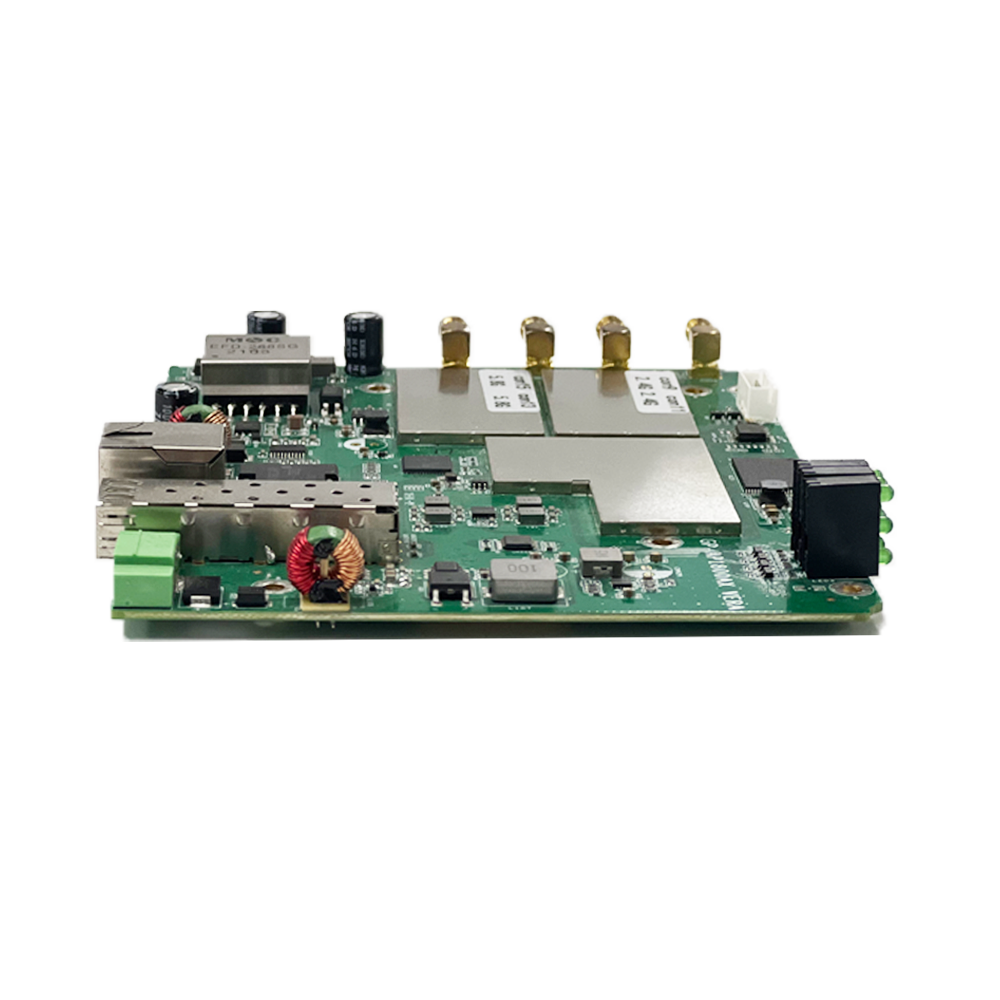

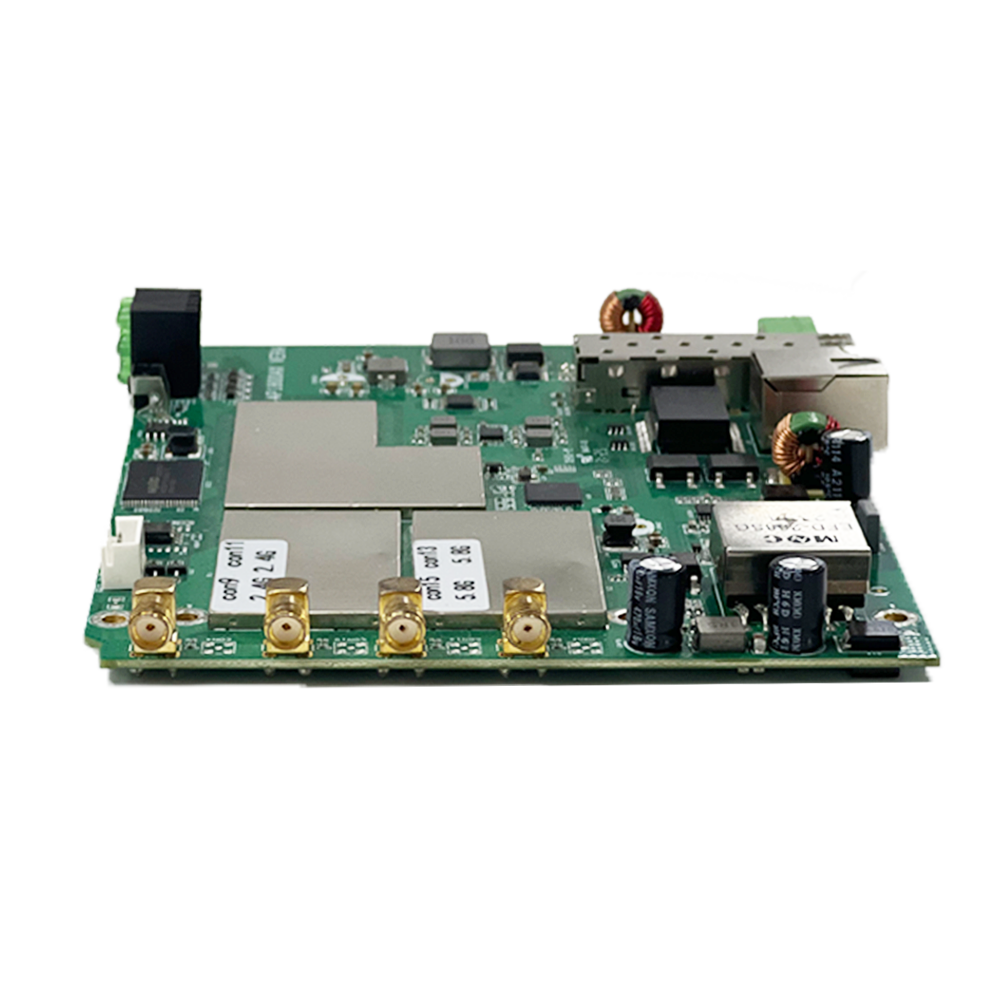

 GP-AP1775AX-BA Series is a high-bandwidth, high-speed Intrinsic Safety (I.S.) wireless access point. It utilizes the IEEE 802.11a/b/g/n/ac/ax standards, supporting dual-band operation at 2.4GHz and 5GHz with data rates up to 1775Mbps.

      GP-AP1775AX-BA Series designed with Qualcomm chipset, and it supports Gigabit Ethernet and Gigabit SFP. The access point features OFDMA, UL, MU-MIMO, and 1024QAM, providing low power consumption, strong concurrency, numerous standby users, strong penetration, and wider coverage advantages.

     GP-AP1775AX-BA Series has been specifically optimized for heat dissipation under high motherboard load conditions. It includes dedicated onboard components designed to resist surges and electromagnetic interference, enhancing the device's stability in harsh industrial environments. It is ideal for use in coal mines, mining sites, underground utility tunnels, and petrochemical plants.


Device Function
WLANOperating frequency2.4GHz

5GHz

Channel bundling40MHz80MHz
MU-MIMOsupportsupport
OFDMAsupportsupport
TWTsupportsupport

1200Mbps(PHY)

NAsupport
575Mbps(PHY)supportNA
A-MPDUsupportsupport
(MLD)supportsupport
(MRC)supportsupport

(STBC)

supportsupport
(LDPC)supportsupport
Maximum access RF

Single Band-- Support 16 Virtual A

Maximum access User number

1024 ( Influenced by Environment Fators )

Maximun connection rate2.4GHz: 575Mbps
5GHz: 1200Mbps
RTS/CTSsupport
CTS-to-selfsupport
Hide SSIDsupport
Terminal aging, heartbeat detectionsupport
Working ModeAP ModeGateway Mode , FAT/FIT Mode

Client ModeBrigde Mode , Client Mode
RF managementload balancingSupport load balancing based on the number of users and traffic
5G is preferredsupport
white movement channel selectionsupport
automatic power adjustmentsupport
intelligent rate selection algorithmsupport
time fair schedulingsupport
RomaingRomaing Switchsupport 802.11k, 802.11v, 802.11r
2 3 Romaing
Securityencryption modesupport64/128WEP,dynamic WEP,TKIP,CCMPencryption
identified mode

coordination AC,support WPA,WPA-PSK,WPA2- Enterprise,

WPA2-PSK,MAC address indenitify,Web indenitify ,PPPoE indentify etc.

wireless subscriber layer 2

isolation

support
wIDSsupport
AAARadius Clientsupport

authenrication server

multi-domain configuration

support
backup authenrication serversupport

LAY2/LAY3

IP address settingstatic IP,dynamic DHCP address access
IPv6support
ACLsupport
DHCP serversupport (router pattern)
NATsupport (router pattern)
Security

WMM(802.11e)

support

priority mapping

support
QoS strategy mappingsupport
bandwidth managementsupport for SSID-based, user-based bandwidth speend limits
Call Admission Control (CAC)support
Working Freuency Band2.4G802.11ax/n/g/b: 2.4GHz-2.483GHz (China)
5G802.11 ax/ac/n/a:
5.150GHz-5.350GHz
5.725GHz-5.850GHz (China)
Modulation techniqueOFDM : BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps
DSSS : DBPSK@1Mbps,DQPSK@2Mbps,CCK@5.5/11Mbps
MIMO-OFDM (11n): MCS 0-15
MIMO-OFDM (11ac): MCS 0-9
MIMO-OFDM (11ax): MCS 0-11
Modulation mode11b:DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac/ac wave2:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM
Maximum transmission power23dBm
adjustable particle size of emission frequency1dBm
working storage temperature-40ºC~75ºC/-40ºC~80ºC
workingstorage humidity0%~100%(Non-condensing)
Power consumptionsupport12V DC(support9-36Vwide-voltage)orPOE48V
whole machine electricity receiving≤16W
MTBF>250000H
