1200Mbps Explosion-Proof Access Point

Product Details

Product Advantage

    * Support 802.11b/g/n and 802.11a/n/ac standards
    * Integration mode of fat and thin
    * Diversified access authentication methods
    * IP67 protection level
    * Comply with ex DIIBT6GB

Product Parameter :

GP-AP1200-FB is a high-performance, high bandwidth, multi-function, outdoor industrial explosion-proof dual band wireless Access Point that supports both 802.11b/g/n and 802.11a/n/ac standards. The equipment is based on 802.11n MIMO (multiple input and multiple output) technology, and adopts 2T2R architecture. The maximum band width of dual frequency concurrent operation can be up to 1167 Mbps, can be widely used in underground pipe gallery, petrochemical and other occasions of wireless network coverage, fully compatible with 802.11 a / B / g / N / AC protocol client equipment access.

Hardware function

QCA9563 + QCA9886 +QCA8334



Maximum rate1200Mbps
Maximum support for wireless access128+
CertificationISO9001, RoHS, FCC, CE
Software function
Working modeAP (fat thin mode switching), universal relay, gateway mode, wireless ISP mode
Wireless function

Support 4 SSIDs, hidden SSID, wireless encryption,

wireless MAC address filtering, WiFi timing off function, multicast acceleration,

user isolation, transmission power setting, wireless client number limit,

fast roaming switching, 5g priority

Network functionVLAN settings, DHCP server, cloud platform server
device management

Backup configuration information, restore configuration information,

restore factory configuration information, restart including scheduled restart and immediate restart,

firmware upgrade, time management including system display time and time synchronization,

system log, support local unified management function

RF parameters
2.4G working frequency band2.4GHz - 2.484GHz
5.8G working frequency band5.150GHz ~ 5.850GHz
2.4G WIFI transport protocol802.11 b / g / n
5.8G WIFI transport protocol802.11 a / n / ac
2.4G Wireless power802.11b:11M / 22±2dBm,1M / 24±2dBm
802.11g:54M / 21±2dBm,6M / 23±2dBm
802.11n HT20:MCS7 / 20±2dBm,MCS0 / 22±2dBm
802.11n HT40:MCS7 / 19±2dBm,MCS0 / 21±2dBm
802.11ax HT40:MCS11 / 15±2dBm,MCS0 / 17±2dBm
5.8G Wireless power802.11a:54M / 19±2dBm,6M-23±2dBm
802.11n HT20:MCS7 / 21±2dBm,MCS0 / 22±2dBm
802.11n HT40:MCS7 / 20±2dBm,MCS0 / 21±2dBm
802.11ac HT80:MCS9 / 18±2dBm,MCS0 / 20±2dBm
2.4G Receiving sensitivity802.11b:11M / -85dBm;1M / -94dBm
802.11g:54M / -72dBm;6M / -90dBm
802.11n:HT20:MCS7 / -70dBm;MCS0 / -88dBm
802.11n:HT40:MCS7 / -68dBm;MCS0 / -86dBm
5.8G Receiving sensitivity802.11a:54M / -72dBm;6M / -90dBm
802.11n HT20:MCS7 / -70dBm;MCS0 / -88dBm
802.11n HT40:MCS7 / -68dBm;MCS0 / -86dBm
802.11ac HT80:MCS9 / 58dBm,MCS0 / -85dBm
2.4G EVM802.11b: ≤ -10 dB
802.11g: ≤ -25 dB
802.11n: ≤ -28dB
5.8G EVM802.11a: ≤ -25 dB
802.11n: ≤ -28 dB
802.11ac: ≤ -32 dB
frequency offset±20ppm
Interface and power supply
AntennaBuilt in 2.4G omnidirectional antenna, gain: 5dBi
Built in 5.8G omnidirectional antenna, gain: 5dBi
WAN1 *10 / 100 / 1000m adaptive WAN / LAN port, supporting Poe power supply
Status indicatorWAN
power supplyPoe AC
Supply voltageAC220V
Maximum power consumption<10W
Environmental and physical performance
Working temperature  -40 ~ 80ºC
Storage temperature-45 ~ 85ºC
Humidity5%~ 95%No condensation

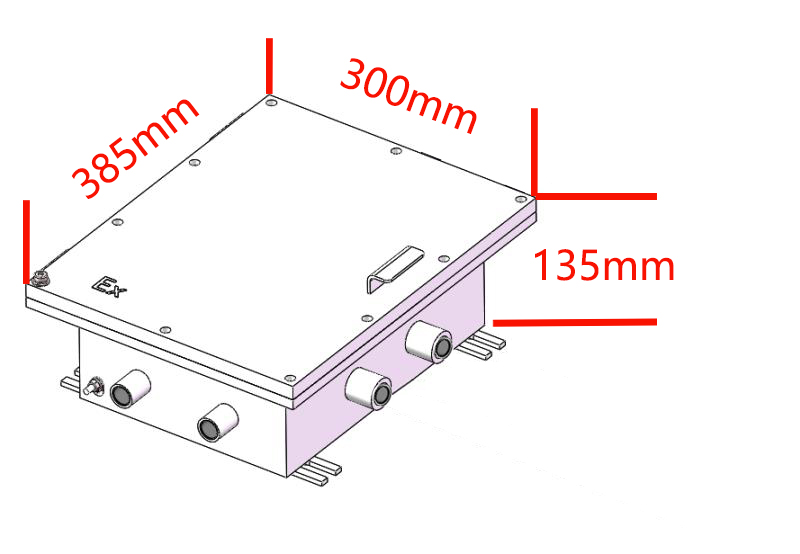

External dimension

385mm×300mm×135mm(length × width × height)

Installation and fixationL-shaped bracket with U-clamp; diameter of holding pole:Φ30 ~ 50mm
Special design

IP67 protection level, electromagnetic shielding, wind protection,

sun protection, shock proof and heat dissipation design
