GP-FC-316 RG316 Series Low Loss Jumper Cables
Product Details
Product Advantage
Product Parameter :
Performance | |
Insulation resistance | 5000 MΩ*km |
Dielectric strength | 2.0KV |
Velocity ratio | 0.7 |
Characteristic impedance | 50±2 |
Capacity | 100pF/m |
Maximum attenuation dB / 100m | |
400MHz | 53.1 |
1000MHz | 85.6 |
3000MHz | 153.2 |

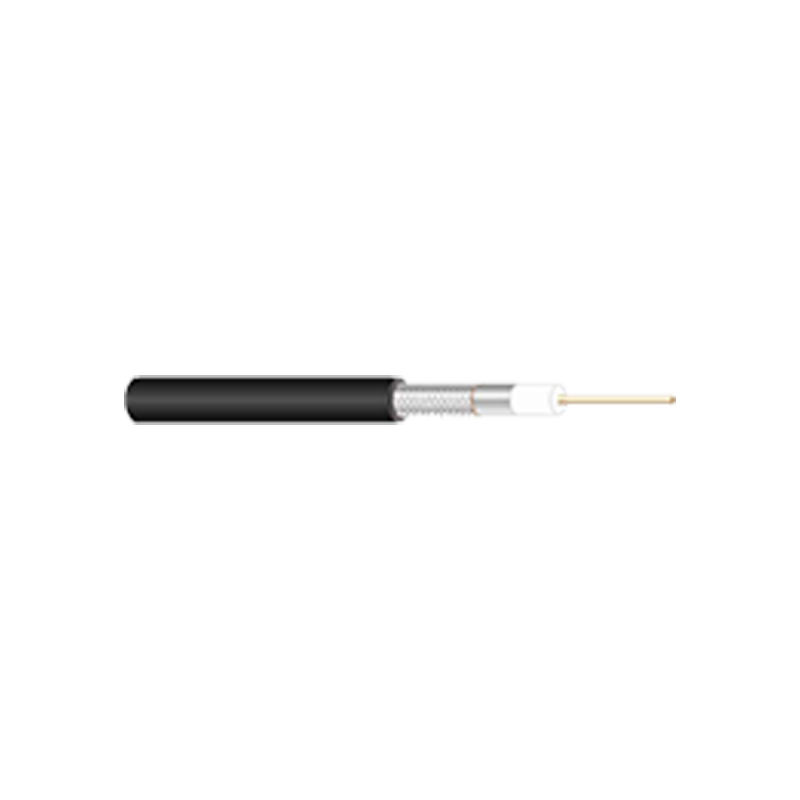

Structure | |
Inner conductor(silver-coated copper wire) | 0.17mm*7 |
Insulation(Outer diameter) | 1.5 mm |
Outer conductor | Single layer weaving |
Cover layer | 0.20mm thickness 2.50mm outer diameter |
Selection | |
GP-FC10-SJ-NJ-316 | SMA Internal thread inner Needle to Type N needle FC10~FC500 0.1 m ~ 5 m |
GP-FC10-SJ-NK-316 | SMA Internal thread inner Needle to Type N female seat FC10~FC500 0.1 m ~ 5 m |

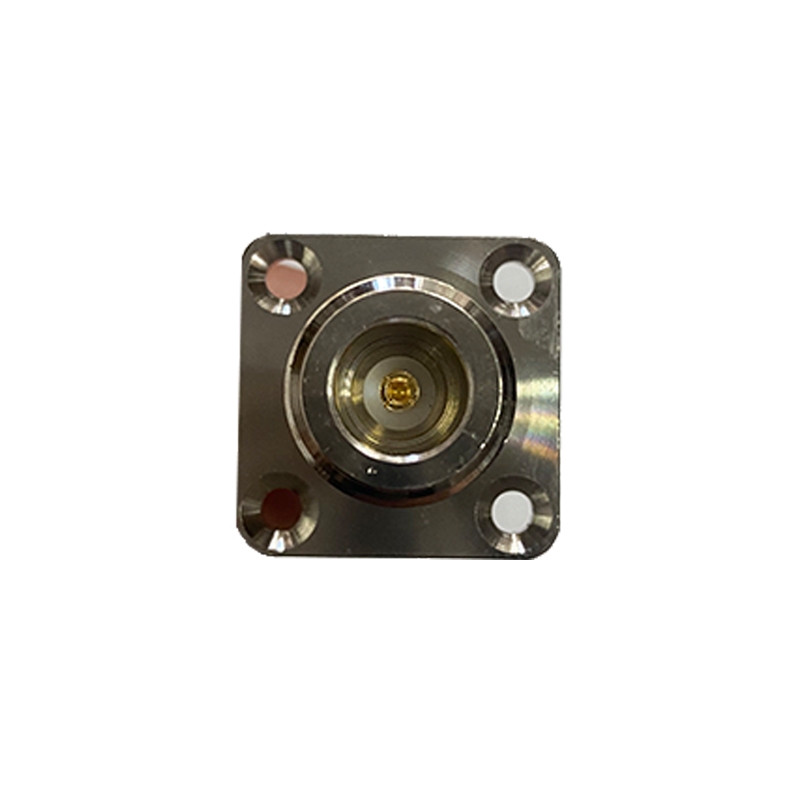

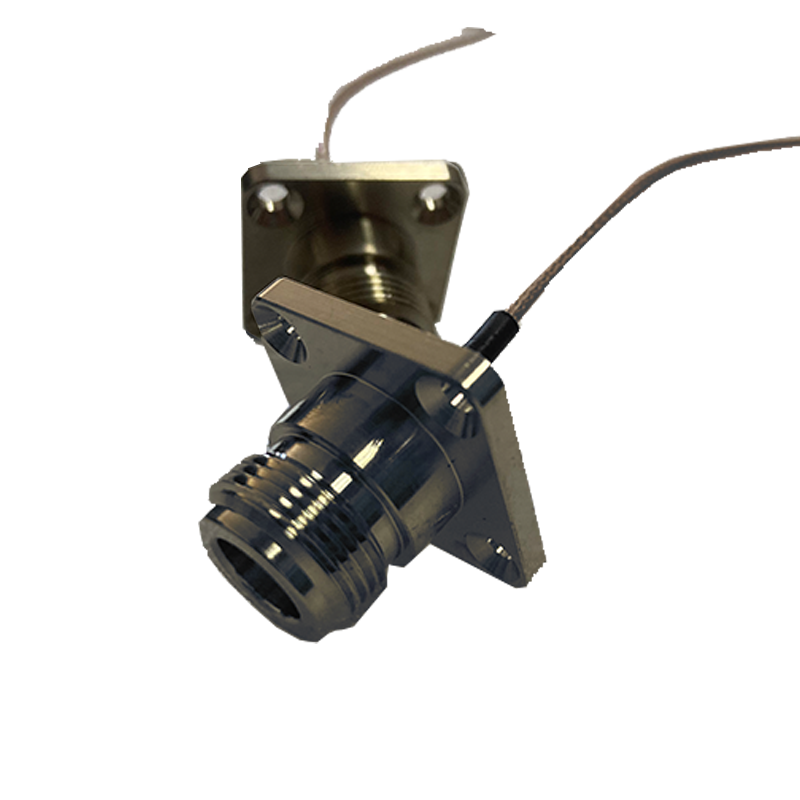

GP-FC10-SJ-NKKF-316 | SMA Internal thread inner Needle to Type N flange female seat with mounting screw holes FC10~FC500 0.1 m ~ 5 m |
GP-FC10-SJ-SJ-316 | SMA Internal thread inner Needle to SMA Internal Thread Needle FC10~FC500 0.1 m ~ 5 m |
GP-FC10-SJ-SKKF-316 | SMA Internal thread inner Needle to SMA flange female seat with mounting screw holes FC10~FC500 0.1 m ~ 5 m |
GP-FC10-RPSJ-SKKF- 316 | SMA Internal thread hole head to SMA flange female seat with mounting screw holes FC10~FC500 0.1 m ~ 5 m |
GP-FC10-RPSJ-NJ-316 | SMA Internal thread hole head to Type N needle FC10~FC500 0.1 m ~ 5 m |
GP-FC10-RPSJ-NK-316 | SMA Internal thread hole head to Type N female seat FC10~FC500 0.1 m ~ 5 m |
GP-FC10-RPSJ-NK-316 | SMA Internal thread hole head to Type N flange female seat with mounting screw holes FC10~FC500 0.1 m ~ 5 m |
GP-FC10-SJ-SK-316 | SMA Internal thread hole head to SMA External thread inner hole FC10~FC500 0.1 m ~ 5 m |
GP-FC10-RPSJ-RPSJ- 316 | SMA Internal thread hole head to SMA internal thread hole head FC10~FC500 0.1 m ~ 5 m |
