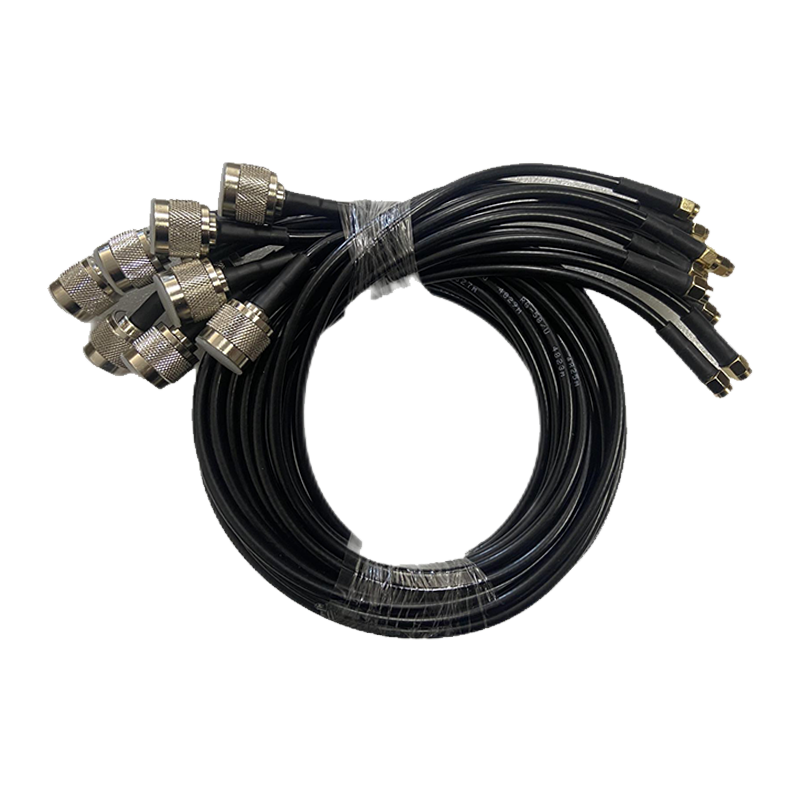

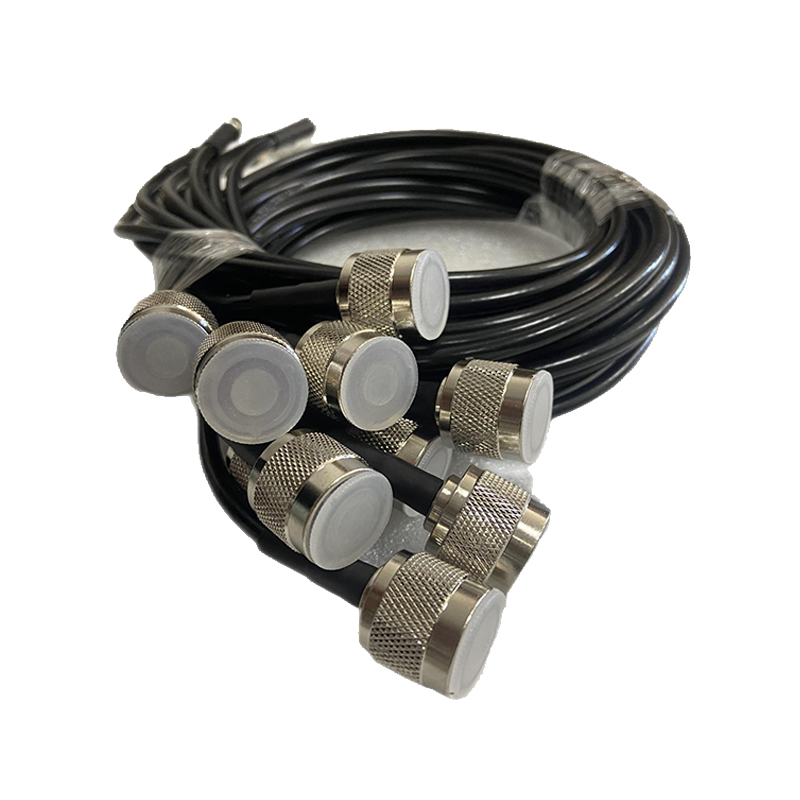

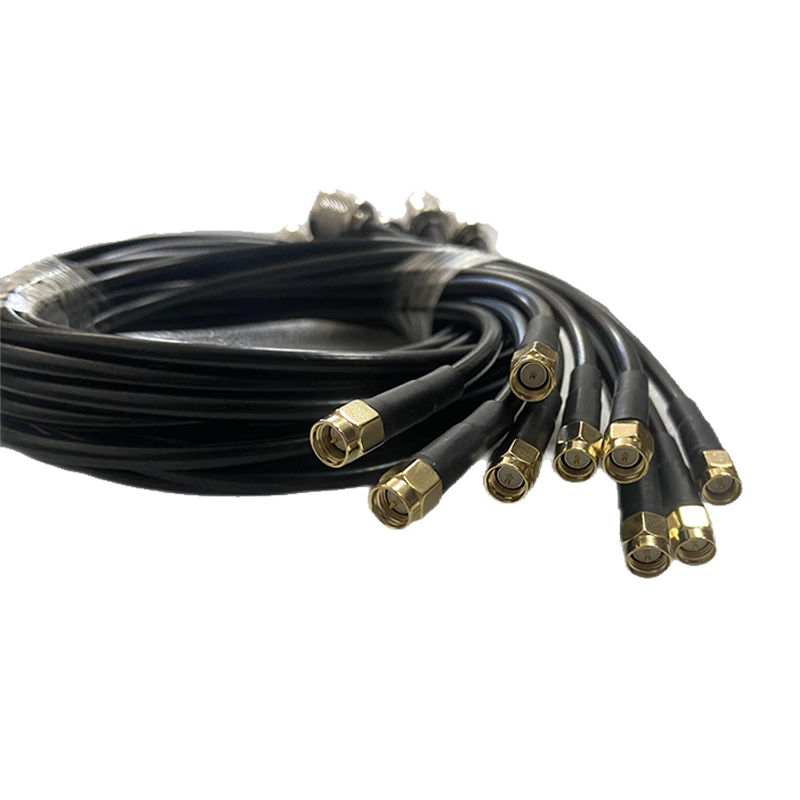

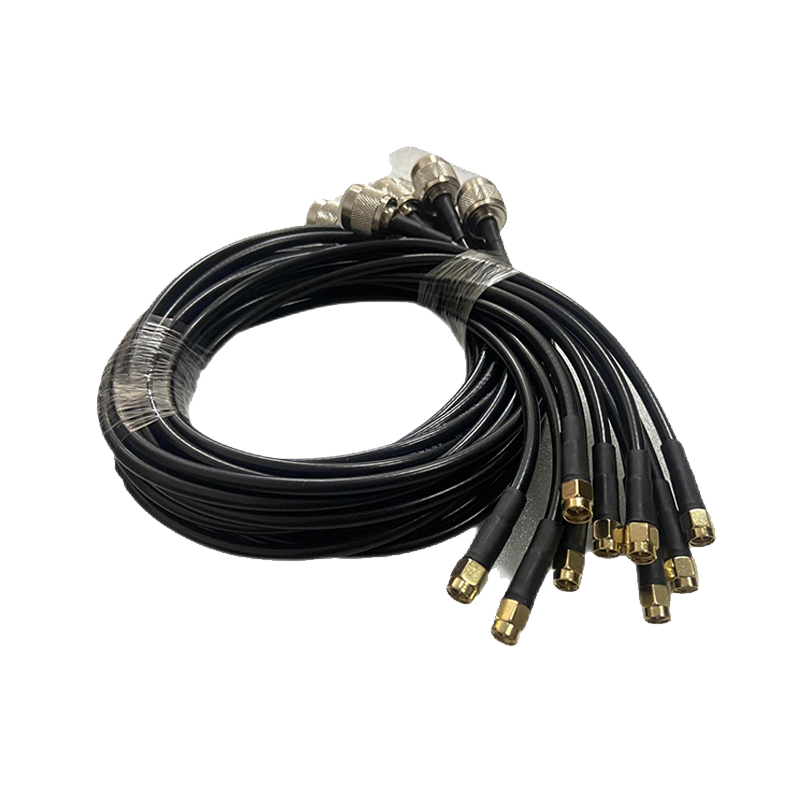

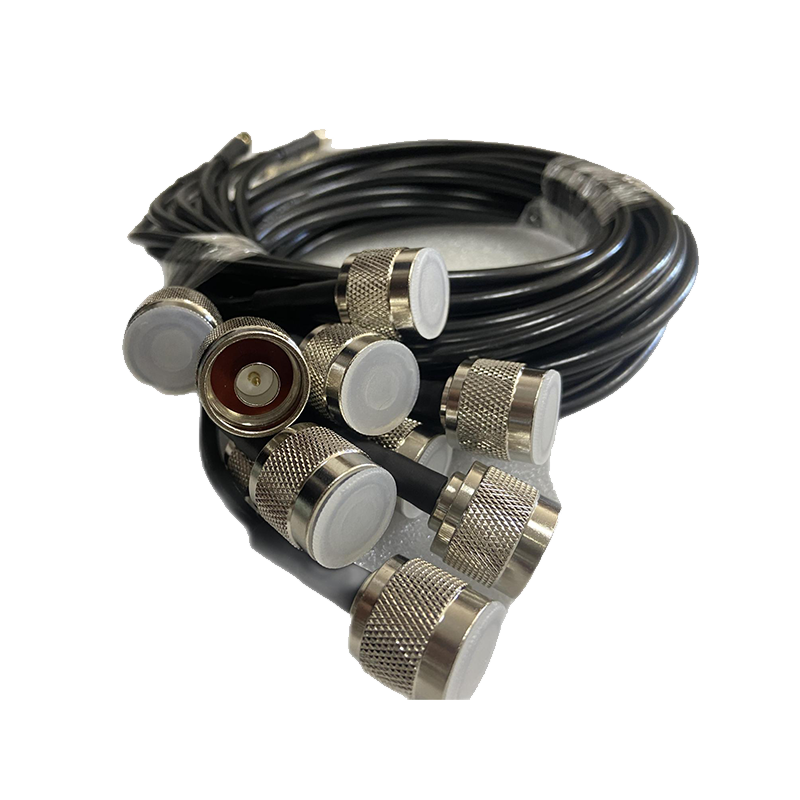

GP-FC10-S-N-5 SMA to N low loss cord extension


Product Details

Product Advantage

    Feeder cables, also known as feed lines or transmission lines, are used in telecommunication and RF (Radio Frequency) systems to transmit signals from the antenna to the main equipment or distribution points. They serve as the primary transmission medium for RF signals.

    The main function of feeder cables is to transport high-frequency signals, such as radio signals, from the signal source (e.g., base station or antenna) to the receiving equipment. They ensure efficient signal transmission and minimize signal loss.

    * Ultra low loss
    * Low transmission delay
    * Expanded polyethylene insulation
    * Minimum attenuation

Product Parameter :

Performance

Direct-current resistance

Internal conductor: 6.92 Ω/km

Wind resistance

External conductor: 10.50 Ω/km

Insulation resistance

5000 MΩ*km

Dielectric strength

1.6KV

Rate

82%

Characteristic impedance

50±2

(SWR) 2000MHz

≤ 1.2

Sheath pressure

2500V(DC)

Sparkover voltage

5000V(DC)

Capacity

81pF/m

Maximum attenuation dB / 100m

2000MHz

32.3

2100MHz

33.6

2400MHz

42.9

3000MHz

48.6

Structure

Inner conductor

1.8mm

Insulation

5.0mm

Outer conductor

5.7mm

Cover layer

7.5mm

Selection

GP-FC10-SJ-NJ-5

SMA Internal thread inner Needle to Type N

FC10 1 m FC15 1.5 m

FC20 2 m FC25 2.5 m

FC30 3 m FC35 3.5 m

FC40 4 m FC45 4.5 m

GP-FC10-SJ-NK-5

SMA Internal thread inner Needle to Type N female seat

FC10 1 m FC15 1.5 m

FC20 2 m FC25 2.5 m

FC30 3 m FC35 3.5 m

FC40 4 m FC45 4.5 m

FC50 5 m

GP-FC10-PRSJ-NJ-5

SMA Internal thread hole head to Type N

FC15 1 m FC15 1.5 m

FC25 2 m FC25 2.5 m

FC35 3 m FC35 3.5 m

FC45 4 m FC45 4.5 m

FC55 5 m

GP-FC10-PRSJ-NK-5

SMA Internal thread hole head to Female Type N

FC15 1 m FC15 1.5 m

FC25 2 m FC25 2.5 m

FC35 3 m FC35 3.5 m

FC45 4 m FC45 4.5 m

FC55 5 m
