4-port Etherent to 232/485 Serial Server
Product Details
Product Advantage
Product Parameter :
GP-C4004 serial port server is RS232/485 developed by our company based on independent software. An isolated serial port server,It completes the overall solution of transparent transmission from 4-way serial port to Ethernet. Users can use the built in VEE service of the device. The device can view its status, match parameters and upgrade the software, so as to improve the user's control and management ability of the device. 4-way serial port type supports desktop installation, which is convenient for some desktop installation conditions. This device serial port supports RS232/RS485 combined together. Achieve a speed of 300bps "115200bps, and the ports have height insulation, anti-static and anti-surge devices which increases the safety and stability of the equipment. | |||
Project | Parameter type | Parametric description | |
Ethernet | Ports number | 3*UTP + 1*SFP optional | |
Ports rate | UTP electrical port: 10 / 100M full half-duplex adaptation, | ||
MDI / MDIX adaptation | |||
SFP light port: 100M | |||
Ports type | 8PIN RJ45, IEEE 802.3 compatible | ||
Configuration | Web mode,centralized configuration management | ||
software, SNMP | |||
VLAN | 16 group | ||
Serial port | Interface number | GP-C4004:4; | |
Interface standard | RS232/RS485 | ||

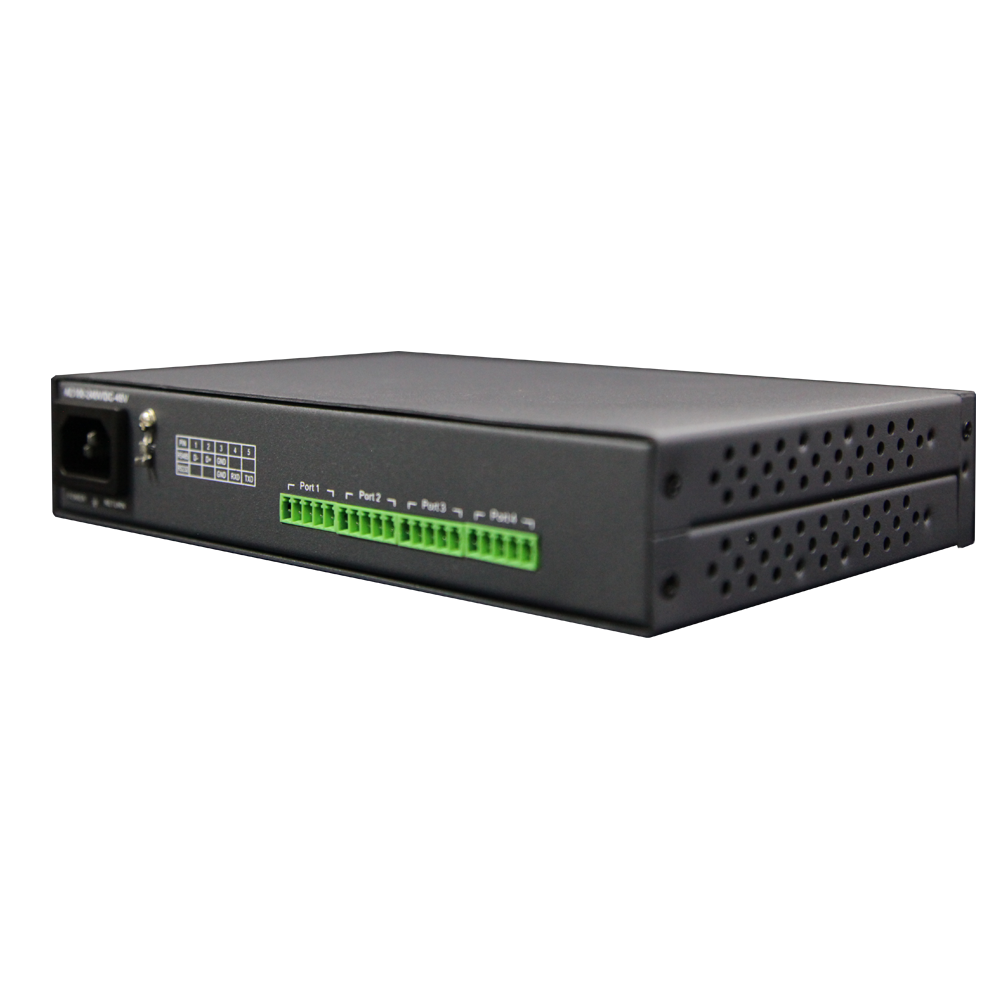

Interface Type | industrial 5PIN terminal | ||
Serial communication parameters | data bit | 5,6,7,8 | |
stop bit | 1,2 | ||
check bit | None,Even,Odd,Space,Mark | ||
baud rate | 300 bps~ 115200bps | ||
signal position | RS-232:Tx,Rx,GND RS-485:Data+,Data-,GND | ||
Port protection | Electrostatic discharge | EN61000-4-2,3level,Contactir discharge:6kv/8kv | |
Lightning protection against surge | EN61000-4-5,3level,4KV/2KA@8/20us&2Ω | ||

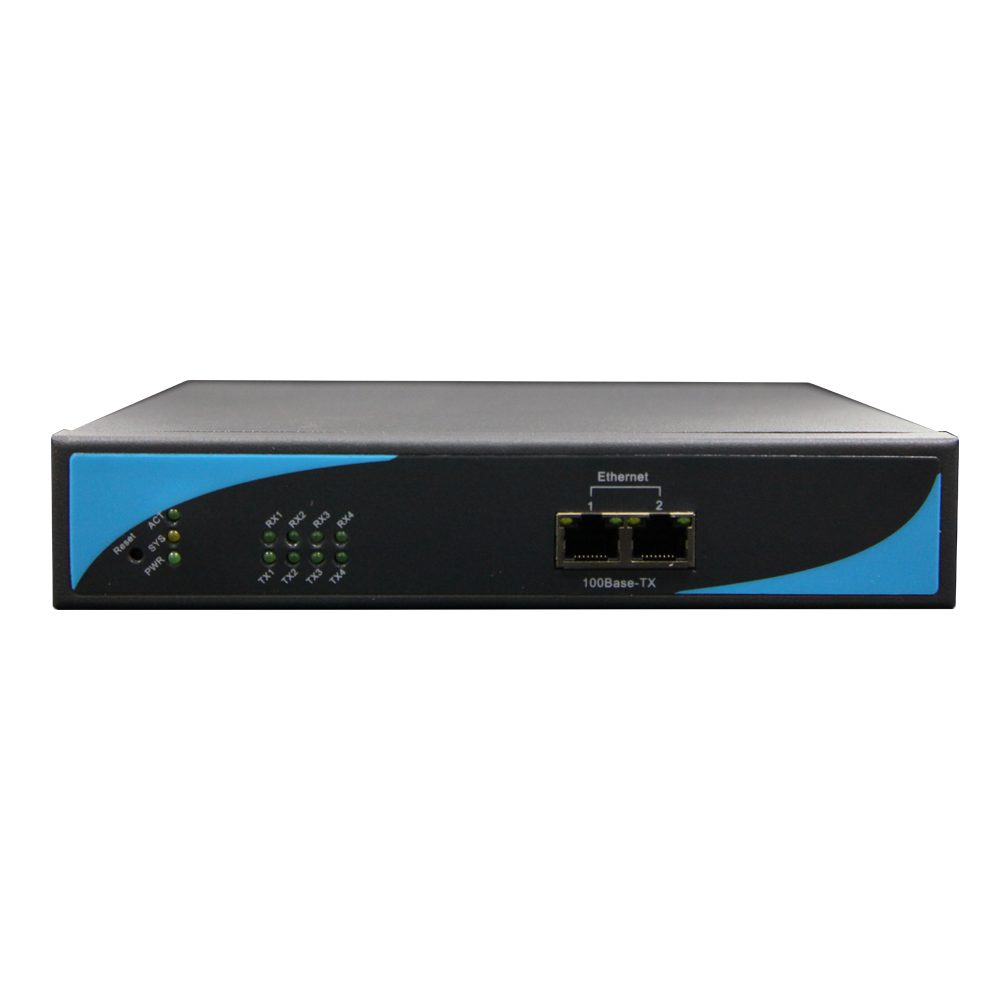

Indicator light | PWR,SYS,TX1~8,RX1~8,SPD/LNK,ACT | ||
Mechanical properties | Shell material | 1.0mm metal shell | |
size | 210*143*40.5 | ||
weitht | 0.56kg | ||
inpot power | A/D:DC48/AC100~240V | ||
Power requirements | power consumption | ≤5W | |
Wiring power | socket | ||
Working environment | working temperature | -10ºC~65ºC | |
storage temperature | -40ºC ~ +85ºC | ||
relative humidity | 5%~95 % No condensation | ||
atmospheric pressure | 70~106 kpa |
