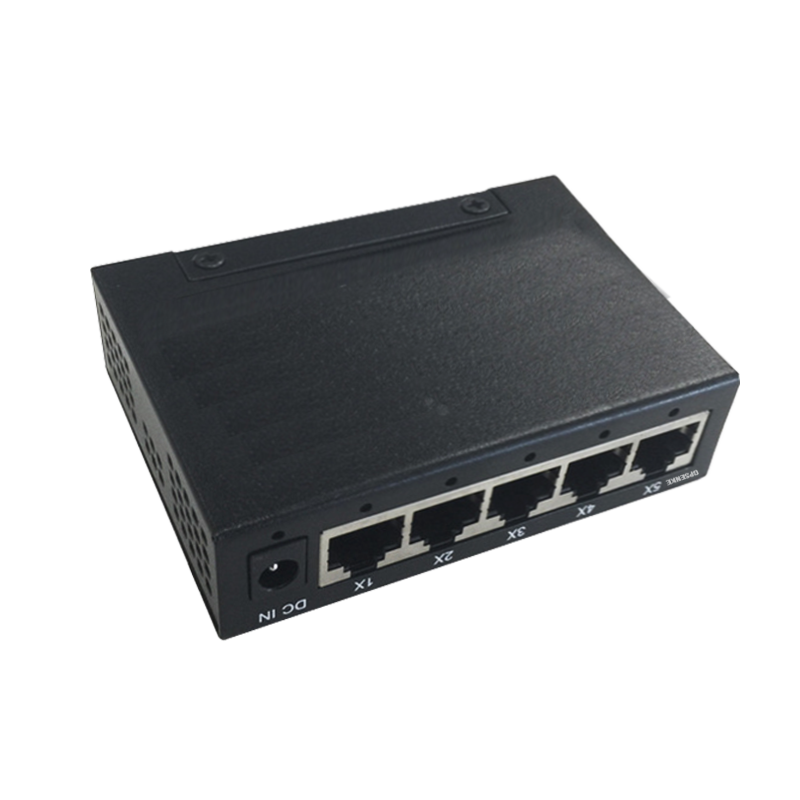

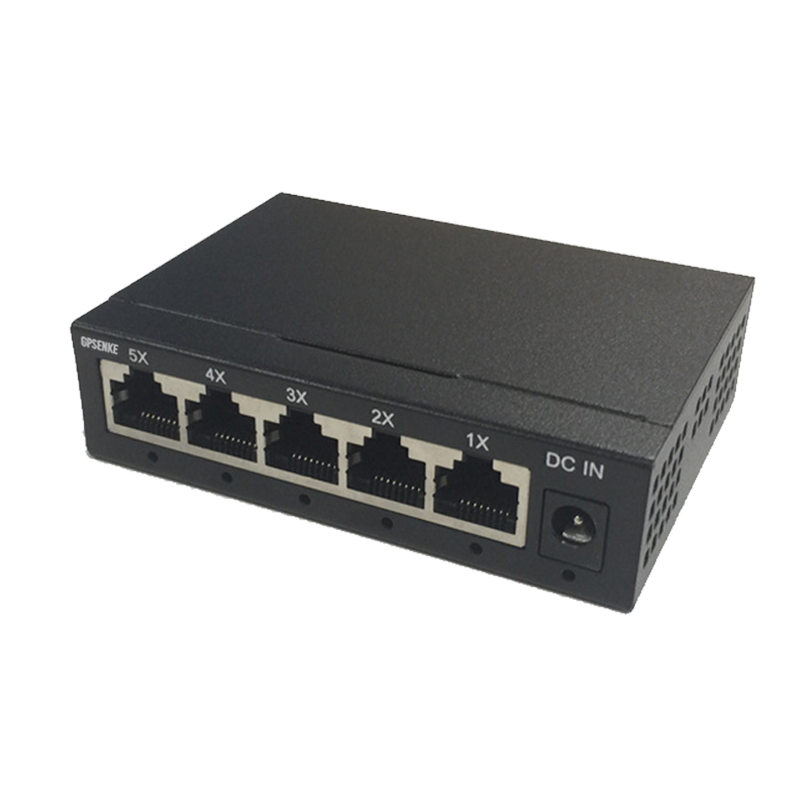

5-port Gigabit switch, iron case, DC5V1A, LR:2KV

Product Details

Product Advantage

Product Parameter :


Model	GP-1005G-I
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Fixed port	5 ports 10/100/1000M adaptive RJ45 ports
Network cable type	10Base-T: Category 3/4/5 unshielded twisted pair, Support 100m maximum transmission distance
	100Base-TX: Category 5 unshielded twisted pair, Support 100m maximum transmission distance
	100Base-TX: Category 6 unshielded twisted pair, Support 100m maximum transmission distance
LED indicator	Power (Power), port status (Link/Act) 1 to 5
Exchange capacity	10Gbps
MAC address table	1K
Forwarding rate	10Mbps:14880PPS
	100Mbps:148800PPS
	1000Mbps: 1488000PPS
Dimensions	1006225(mm)
Power Specifications	3.3VDC 1A
Power consumption	< 3.3W
Operating temperature	0°C～40°C
Storage temperature	-40°C～70°C
Working humidity	10%～90% RH non-condensing
storage humidity	5%～90% RH non-condensing
Cooling method	Natural cooling
Equipment size	947025mm
Packing List	Power Adapter
	1 Ethernet switch
	Quick Start (with certificate and warranty card)
