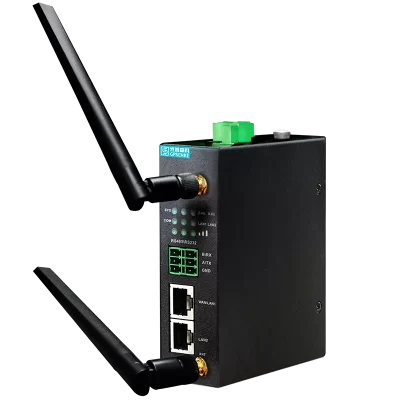

GP-AG1000 Series
Industrial Fast Roaming Client

Software Parameter

WLAN

Frequency Band

2.4GHz

5GHz

Channel Bonding

40MHz(Not Recommend)

80MHz

MU-MIMO

Support

Support

OFDMA

Support

Support

TWT

Support

Support

867 Mbps(PHY)

NA

Support

300Mbps(PHY)

Support

NA

A-MPDU

Support

Support

MLD

Support

Support

MRC

Support

Support

STBC

Support

Support

LDPC

Support

Support

MAX Virtual AP

Single Band Support 16 Virtual AP

Max Access Users

256 ( Influenced by Environment Fators )

Max Access Spend

2.4GHz: 300 Mbps

5GHz: 867 Mbps

RTS/CTS

Support

CTS-to-self

Support

Hidden SSID

Support

Terminal Aging &

Heartbeat Detection

Support

Working Mode

AP Mode

Bridge Mode (LAY2)

Router Mode (LAY3)

Client Mode

Support Client Mode

Support MAC Address Clone

RF

Load Balancing

Load balancing is supported based on the number of users and user traffic

5G Priority

Support

Automatic Channel Selection

Support

Automatic Power Regulation

Support

Intelligent Speed Select

Support

Time Fair Scheduling

Support

Roaming

Roaming Switch

Support 802.11k, 802.11v, 802.11r

LAY2/LAY3 Roaming

Security

Encryption

Support 64/128 bit WEP、Dynamic WEP、

TKIP、CCMP encryption

Authentication Method

Cooperate With AC, Support WPA、WPA-PSK、WPA2- Enterprise、WPA2-PSK、WPA3、MAC address Verify、Web Verify、PPPoE Verification and etc Methods

LAY2 Isolation of

Wireless Users

Support

wIDS

Support

AAA

Radius Client

Support

Authentication Server Multi-domain configuration

Support

Authentication Server

Backup

Support

LAY2/LAY3

IP Address

Static IP and DHCP dynamically obtain addresses

IPv6

Support

ACL

Support

DHCP server

Support (Router Mode)

NAT

Support (Router Mode)

Service Quality

WMM(802.11e)

Support

WMM(802.11e)

Priority Mapping

Support

QoS Policy Mapping

Support

Bandwidth Managed

Support Bandwidth Speed Limitation based on SSID and Users

Call Admission Control（CAC）

Support

Maintenance

Network Management

SNMPV1/V2c/V3、Trap、Telnet、FTP/TFTP、WEB

Hardware Parameter

Size

102mm × 35mm× 113mm

Weight

1 kg

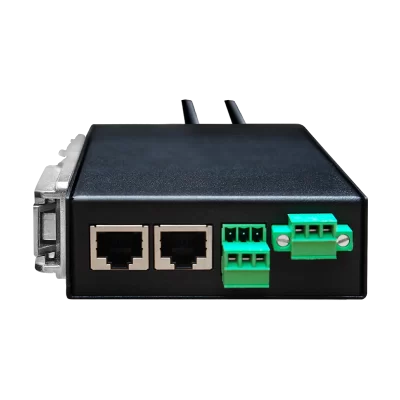

Port

Ethernet

2 × 10/100/1000Base-T PoE/RJ45 Port

Serial

1×RS232/485

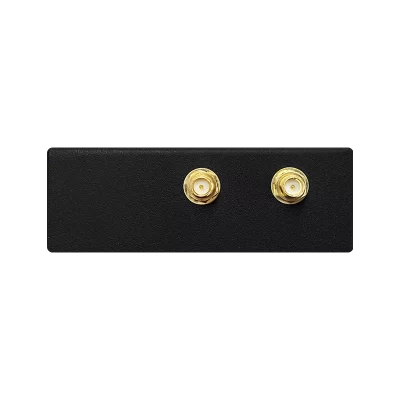

Antenna

2 × RPSMA-K Antenna Port

(External Antenna--Optional)

Working

2.4G

802.11 n/g/b: 2.4GHz-2.483GHz ( CHINA )

5G

802.11 ac/n/a:

5.150GHz-5.350GHz

5.725GHz-5.850GHz ( CHINA )

Modulation Technology

OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、

64-QAM@48/54Mbps DSSS : DBPSK@1Mbps、

DQPSK@2Mbps、CCK@5.5/11Mbps

MIMO-OFDM （11n）: MCS 0-15

MIMO-OFDM （11ac）: MCS 0-9

Modulation Method

11b: DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps

11a/g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,

QPSK@12/18Mbps,BPSK@6/9Mbps

11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

11ac: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM

MAX Transmit Power

23dBm

Adjustable Granularity

1dBm

Working Temperature

-40ºC ～ 75ºC

Storage Temperature

-40ºC ～ 85ºC

Operating Humidity

0%~95%( Non-condensing)

IP Protection Level

IP40

Power Supply

DC9V-36V Power Supply

Consumption

(Client5.8G)

≤14W

MTBF

>250000H

CE

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV

IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV

IEC 61000-4-6 CS: 3 V

IEC 61000-4-8 PFMF
