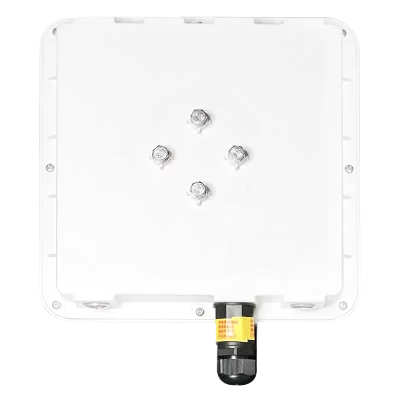

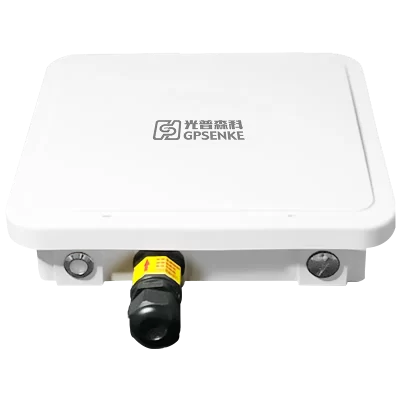

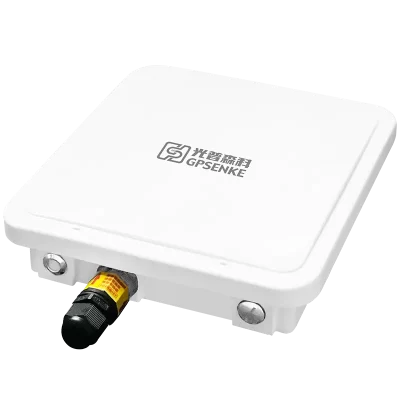

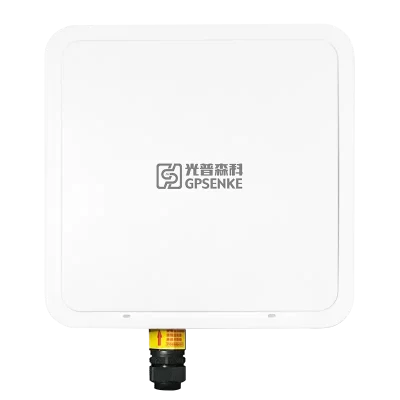

GP-AP1200-D Series
Directional WiFi5 AP/Client

Software Parameter

WLAN

Frequency Band

2.4GHz

5GHz

Streams

2

2

Channel Bonding

40MHz(Not Recommend)

80MHz

MU-MIMO

NA

Support

867 Mbps(PHY)

NA

Support

300Mbps(PHY)

Support

NA

A-MPDU

Support

Support

MLD

Support

Support

MRC

Support

Support

STBC

Support

Support

LDPC

Support

Support

MAX Virtual AP

Single Band Support 16 Virtual AP

Max Access Users

120+ ( Influenced by Environment Fators )

Max Access Spend

2.4GHz: 300 Mbps

5GHz: 867 Mbps

RTS/CTS

Support

CTS-to-self

Support

Hidden SSID

Support

Terminal Aging &

Heartbeat Detection

Support

Working Mode

AP Mode

FAT/ FIT AP Mode

Other Mode

Relay Mode/ Gateway Mode/ Wireless ISP Mode

RF

Load Balancing

Load balancing is supported based on the number of users and user traffic

5G Priority

Support

Automatic Channel Selection

Support

Automatic Power Regulation

Support

Intelligent Speed Select

Support

Time Fair Scheduling

Support

Roaming

Roaming Switch

Support 802.11k, 802.11v, 802.11r

LAY2/LAY3 Roaming

Security

Encryption

Support 64/128 bit WEP、Dynamic WEP、

TKIP、CCMP encryption

Authentication Method

Cooperate With AC, Support WPA、WPA-PSK、WPA2- Enterprise、WPA2-PSK、WPA3、MAC address Verify、Web Verify、PPPoE Verification and etc Methods

LAY2 Isolation of

Wireless Users

Support

wIDS

Support

AAA

Radius Client

Support

Authentication Server Multi-domain configuration

Support

Authentication Server

Backup

Support

LAY2/LAY3

IP Address

Static IP and DHCP dynamically obtain addresses

IPv6

Support

ACL

Support

DHCP server

Support (Router Mode)

NAT

Support (Router Mode)

Service Quality

WMM(802.11e)

Support

WMM(802.11e)

Priority Mapping

Support

QoS Policy Mapping

Support

Bandwidth Managed

Support Bandwidth Speed Limitation based on SSID and Users

Call Admission Control（CAC）

Support

Maintenance

Network Management

SNMPV1/V2c/V3、Trap、Telnet、FTP/TFTP、WEB

Hardware Parameter

CPU

QCA9563+QCA9882+QCA8334

Flash

16MB

DDR

128MB

PA-2.4G

SKY65174

PA-5G

SE5023L

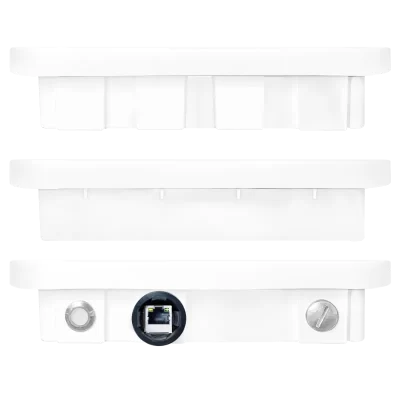

Port

Ethernet

1 × 10/100/1000Base-T PoE/RJ45 Port

Reset

1 × Reset Button

Antenna

2.4G：Build-in Directional 10dbi

5G： Build-in Directional 13dbi

2.4G

Working Band

802.11b/g/n : 2.4GHz-2.483GHz ( CHINA )

WiFi Protocol

802.11 b / g / n

Wireless Power

802.11b：11M27±2dBm，1M29±2dBm

802.11g：54M26±2dBm，6M29±2dBm

802.11n HT20：MCS725±2dBm，MCS028±2dBm

802.11n HT40：MCS724±2dBm，MCS027±2dBm

Receiver Sensitivity

802.11b：11M-85dBm；1M-94dBm

802.11g：54M-72dBm；6M-90dBm

802.11n：HT20：MCS7-70dBm；MCS0-88dBm

802.11n：HT40：MCS7-68dBm；MCS0-86dBm

EVM

802.11b_11M: ≤ -10 dB

802.11g_54M: ≤ -25 dB

802.11n_MCS7: ≤ -28dB

5G

Working Band

802.11ac/n/a: 5.150GHz-5.350GHz

5.725GHz-5.850GHz ( CHINA)

WiFi Protocol

802.11 a / n / ac

Wireless Power

802.11a：54M24±2dBm，6M-27±2dBm

802.11n HT20：MCS723±2dBm，MCS025±2dBm

802.11n HT40：MCS722±2dBm，MCS025±2dBm

802.11ac HT80：MCS921±2dBm，MCS023±2dBm

Receiver Sensitivity

802.11a：54M-72dBm；6M-90dBm

802.11n HT20：MCS7-70dBm；MCS0-88dBm

802.11n HT40：MCS7-68dBm；MCS0-86dBm

802.11ac HT80：MCS9-58dBm、MCS0-85dBm

EVM

802.11a_54M: ≤ -25 dB

802.11n_MCS7: ≤ -28 dB

802.11ac_MCS9: ≤ -32 dB

PPM

±20ppm

Modulation Technology

OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、

64-QAM@48/54Mbps DSSS : DBPSK@1Mbps、

DQPSK@2Mbps、CCK@5.5/11Mbps

MIMO-OFDM （11n）: MCS 0-15

MIMO-OFDM （11ac）: MCS 0-9

Modulation Method

11b: DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps

11a/g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,

QPSK@12/18Mbps,BPSK@6/9Mbps

11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

11ac: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM

MAX Transmit Power

25dBm

Adjustable Granularity

1dBm

Operating Temperature

-40ºC ～ 75ºC

Storage Temperature

-40ºC ～ 85ºC

Operating Humidity

0%~95%( Non-condensing)

Size

228mm× 228mm× 68mm ( Not including waterproof connector )

Weight

3.19kg

IP Protection Level

IP67

Power Supply

Support 802.3at / DC12V Power Supply

Consumption

(Client5.8G)

≤18W

MTBF

>250000H
