Introduction

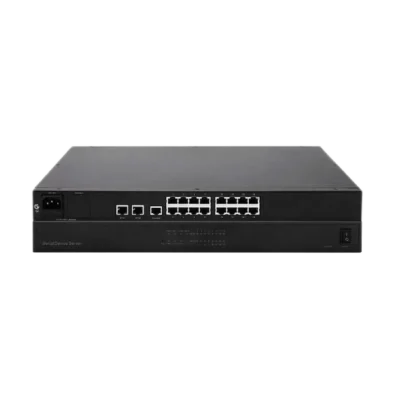

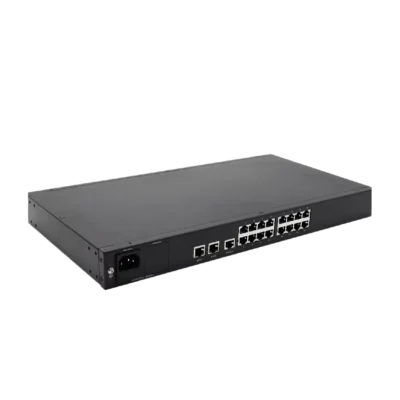

The GP-C40016 is a high-performance industrial serial server. It support 16*RS-232/485/422 serial ports, enabling remote control functionality. It is equipped with 2 10/100Base-T(x) Ethernet ports and integrates a TCP/IP protocol stack, enabling transparent two-way data transmission between serial ports and the network, easily connecting serial devices to the network.
The GP-C40016 supports multiple protocols such as ARP, IP, TCP, HTTP, ICMP, UDP. It features an easy-to-use interface with a setup wizard for simple configuration and management. It is widely used in industrial control, equipment automation, IoT, environmental monitoring, smart transportation, and other fields, helping businesses achieve device networking and remote management. 、
Features
- Support 648 MHz frequency, 32MB SDRAM, and 16MB flash.
- Support 2*10/100Base-T(x) Ethernet ports for reliable connectivity.
- Support 16*RS-232/485/422 serial ports for remote control.
- Support reset button for factory reset.
- Support watchdog for system stability.
- RS-232 ports: 5 signal lines (RXD, TXD, RTS, CTS, GND).
- RS-485/RS-422 ports: T/R+, T/R-, R+, R-. RS-485
- DIP switch for adjusting resistors and 120Ω terminal resistance.
- Serial port indicators for transmit/receive status.
- Support MCP/VCOM virtual serial ports.
- Support ±6KV ESD protection for serial ports
- Support 1.5KVAC isolation for Ethernet ports.
- Support Web-based firmware upgrade.
