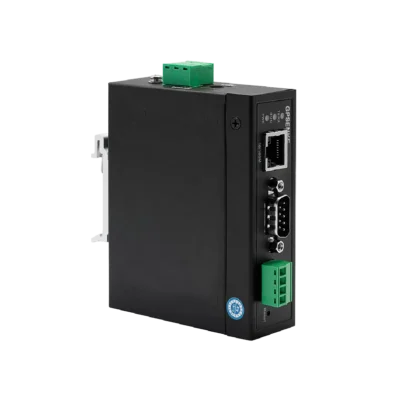

GP-C6001 Serial Server
1*RS-232/485/422 to 1*ETH

  • Support RS232 / RS485/RS422 serial ports
  • Support for IEEE802.11b/g/n standards
  • SupportVCOM, MCP, TCP SERVER, TCP CLIENT, UDP
  • Support Remote Pair, Modbus TCP SERVER/TCP CLIENT, MQTT
  • Support DC12~57.6V
  • Baud rate ranges from 300-921600bps
  • Support None, Odd, Even.
  • Support TCP Client, TCP Server, UDP Client, DUP Server Mode.
  • Support Modbus TCP/RTU Protocal. Support DHCP.
  • Support automatically obtain IP & Customize static IP
  • Support 10/100Mbps Ethernet, support Auto-MDIX Switch

Introduction

GP-C6001 serial device server provides a serial to network function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.

Features

  • With metal housing and multiple installation design, suitable for industrial control site applications.
  • Wide power input (12~57.6VDC), suitable for different field power supply methods
  • There is 1 RS232/RS485/RS422, to meet the application of multiple serial ports
  • Support a wide baud rate range of 300-921600bps Suitable for applications between different devices
  • Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP
  • Support Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.
  • Support upgrade Web firmware upgrade, convenient for special applications in different occasions

Paramaters

Technical Parameters

Processor

32bit 400MHZ

Storage

128M

Ethernet interface

10/100M(Built-in 1.5KV electromagnetic isolation)

Auto MDI/MDI-X Ethernet interface, RJ45interface

Serial Standard

RS-232,RS-485,RS-422

SerialRS-232 port

DB9 male

SerialRS-485/422 port

3.81 unplugged terminal block

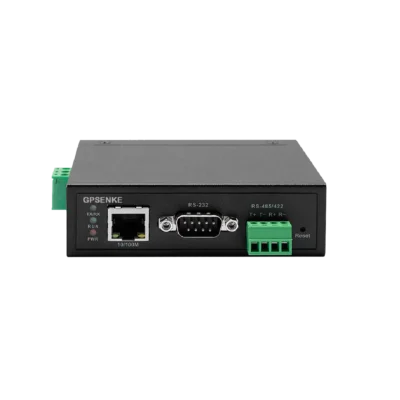

Indicator light

Power indicator light PWR, Running indicator light RUN,

Serial port transmit and receive indicator DATA.

Power connector

DC-005 DC socket or 3Pin 5.08 terminal for power supply, with built-in protection against reverse connection, to avoid damage to the equipment by wrong positive and negative connection

Power range

DC12~57.6V

Function buttons

1 factory reset button RESET

Max.power consumption

1.6W

Housing

Metal housing, protection level IP30

Operating environment

Storage temperature: -40~85°C

Operating temperature: -40~85°C

Relative humidity: 5% ~95% (Non-condensation)

Mounting method

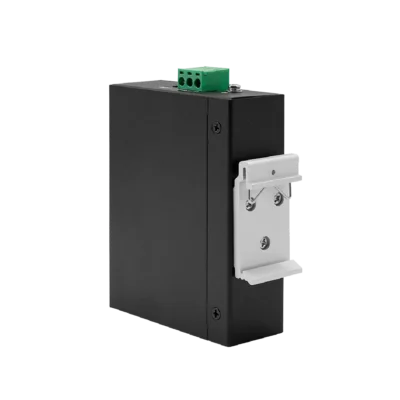

Default rail mount, fixed piece mount (wall mount optional)

Dimensions L×W×H

100mm×80.8mm×30mm（Without mounting parts）

Net. Weight

270g

Software Parameters

Operating System

Based on Linux

Protocol support

ARP,IP,ICMP,UDP,TCP,HTTP,DHCP,SNMP,MQTT,MODBUS

Configuration method

Web browser, VCOM Utility(Virtual COM Only Windows)

Operating Mode

VCOM,MCP,TCP SERVER,TCP CLIENT,UDP,Remote Pair mode,Modbus TCP SERVER,Modbus TCP CLIENT,MQTT

Baud rate

300-921600bps

Data Bits

5,6,7,8

Stop Bits

1,2

Check Bits

None,Odd,Even

Flow Control

RTS/CTS,DTR/DSR,XON/XOFF（Only RS-232）
