GP-C6004 Serial Server
4*RS-232/485/422 to 1*ETH

  • Support 4*RS232 / RS485/RS422 serial ports
  • Support for IEEE802.11b/g/n standards
  • SupportVCOM, MCP, TCP SERVER, TCP CLIENT, UDP
  • Support Remote Pair, Modbus TCP SERVER/TCP CLIENT, MQTT
  • Support DC12~48V
  • Baud rate ranges from 300-921600bps
  • Support None, Odd, Even.
  • Support TCP Client/Server, UDP Client/Server Mode.
  • Support Modbus TCP/RTU Protocal. Support DHCP.
  • Support automatically obtain IP & Customize static IP
  • Support 10/100Mbps Ethernet
Introduction
GP-C6004 serial device server provides a function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality. With metal housing and multiple installation design, suitable for industrial control site applications.
Features
  • With metal housing and multiple installation design, suitable for industrial control site applications.
  • Wide power input (12~48VDC), suitable for different field power supply methods
  • There is 4*RS232/RS485/RS422, to meet the application of multiple serial ports
  • Support a wide baud rate range of 300-921600bps Suitable for applications between different devices
  • Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP
  • Support Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.
  • Support upgrade Web firmware upgrade, convenient for special applications in different occasions

Technical Parameters

Model

GP-C6004

GP-C6004MT

Processor

32bit 400MHZ

Storage

128M

Ethernet interface

10/100M() auto MDI/MDI-X Ethernet interface, interface RJ45

10/100M（Built-in 1.5KV electromagnetic isolation）auto MDI/MDI-X Ethernet interface, interface RJ45

Serial Standard

RS-232, RS-485, RS-422

RS-485, RS-422

Serial Connector

4×RJ45

4×4Pin 3.81mm terminals

Indicator light

PWR light RUN

Power indicator light PWR,

Running indicator light RUN

Power connector

DC-005 DC socket or 3Pin 5.08 terminal for power supply, with built-in protection against reverse connection, to avoid damage to the equipment by wrong positive and negative connection

Power range

DC12~48V

Function buttons

1 factory reset button RESET

Max.power consumption

2W

Housing

Metal housing, protection level IP30

Operating environment

Storage temperature: -40~85°C

Operating temperature: -40~85°C

Relative humidity: 5 ~95% (Non-condensation)

Dimensions L×W×H

161mm×91mm×37mm（Without mounting parts）

Net. Weight

350g

Software Parameters

Operating System

Based on Linux

Protocol support

ARP,IP,ICMP,UDP,TCP,HTTP,DHCP,SNMP,MQTT,MODBUS

Configuration method

Web browser, VCOM Utility(Virtual COM Only Windows)

Operating Mode

VCOM,MCP,TCP SERVER,TCP CLIENT,UDP,Remote Pair mode,Modbus TCP SERVER,Modbus TCP CLIENT,MQTT

Baud rate

300-921600bps

Data Bits

5,6,7,8

Stop Bits

1,2

Check Bits

None,Odd,Even

Flow Control

RTS/CTS,DTR/DSR,XON/XOFF（Only RS-232）

Certification

EMC

55032/24

EMI

Class A

EMS

IEC61000-4-2 ESD: Contact 4kV,Air 8kV

IEC61000-4-3 RS: 80MHz-1GHz 3V/m

IEC61000-4-4 EFT: Power 1kV,Signal 0.5kV

IEC61000-4-5 Surge: Power differential mode 1KV, common mode 2KV（8/20）Ethernet ports differential mode 1KV, common mode 2KV（10/700）RS-232/485/422 differential mode 0.5KV, common mode 1KV

IEC61000-4-6 CS: 150KHz-80MHz 3V/m

Model Selection

Module

Supply Voltage

Connection

Communication Mode

GP-C6004

12-48V

RJ45

RS-232/RS-485/RS-422

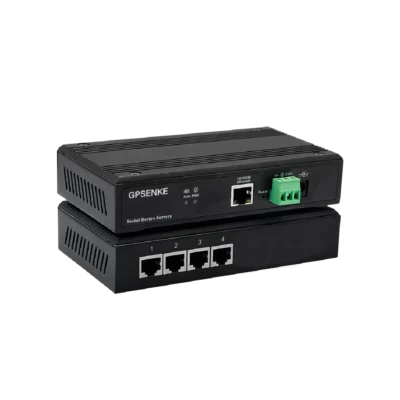

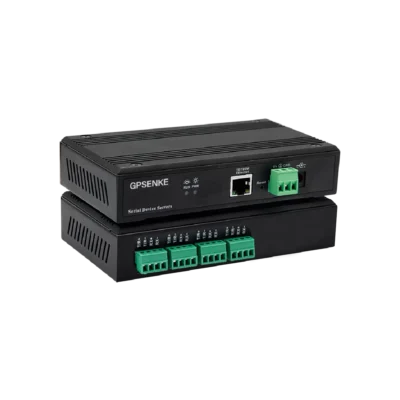

GP-C6004MT

12-48V

3.81 Terminal

RS-485/RS-422

GP-C6004-5V

5V

RJ45

RS-232/RS-485/RS-422

GP-C6004MT-5V

5V

3.81 Terminal

RS-485/RS-422

GP-C6004-C

12-48V

3.81 Terminal

RS-232
