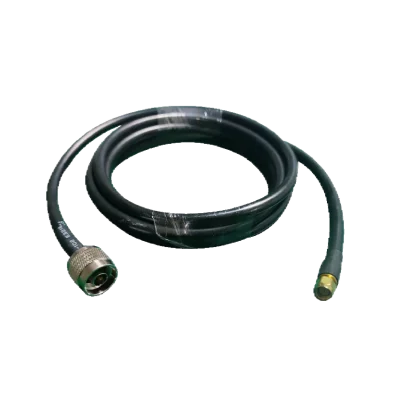

GP-FC-S-N Series<br>Feeder Extension Cable

GP-FC-S-N Series
Feeder Extension Cable

  • SMA to N-type extension cable
  • Ultra-low loss
  • Low transmission delay
  • Polyethylene foam insulation
  • Minimum attenuation
Introduction
TThe GP-FC-S-N Series is a low-loss feeder extension cable from GPSENKE, it is build for harsh industrial environments. Featuring SMA to N-Type connectors, it ensures ultra-low signal loss and latency with foamed polyethylene insulation.

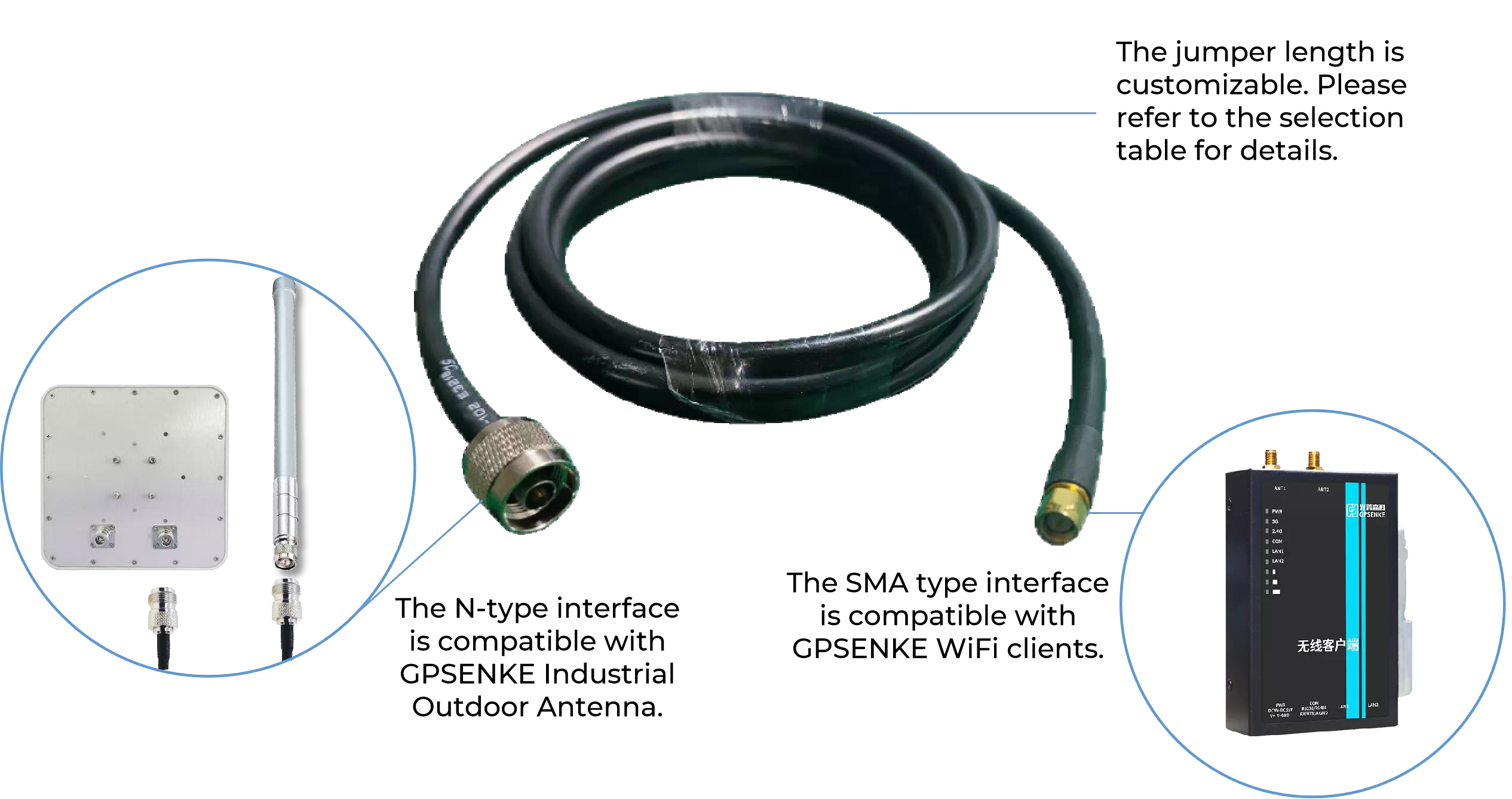

The GP-FC-S-N Series is designed for compatibility with GPSENKE wireless client devices and industrial-grade WiFi antennas, it’s ideal for smart warehousing, smart factories, vehicle communications and etc application Scenario..

Technical Parameter

Electrical Factor

DC Resistance

Inner Conductor 6.92 Ω/km

Wind Resistance Capability

Outer Conductor 10.50 Ω/km

Insulation Resistance

5000 MΩ*km

Dielectric Strength

1.6KV

Rate

82%

Characteristic Impedance

50±2

VSWR at 2000 MHz

≤ 1.2

Sheath Withstand Voltage

2500V（DC）

Spark Test Voltage

5000V（DC）

Capacitance

81pF/m

Maximum Attenuation dB/100m

2000MHz

32.3

2100MHz

33.6

2400MHz

42.9

3000MHz

48.6

Mechanical Performance

Inner Conductor

1.8mm

Insulation

5.0mm

Outer Conductor

5.7mm

Sheath

7.5mm

Port

SMA to N-Type

Length

Please refer to the selection table for details.

Model Selection

Model

Description

Length

GP-FC100-SJ-NJ-5

SMA Female Threaded Internal to N-type Male Pin

FC100 1 m

FC150 1.5 m

FC200 2 m

FC250 2.5 m

FC300 3 m

FC350 3.5 m

FC400 4 m

FC450 4.5 m

FC500 5 m

GP-FC100-SJ-NK-5

SMA Female Threaded Internal to N-type Female Socket

GP-FC100-PRSJ-NJ-5

SMA Internal Threaded Hole to N-type Male Pin

GP-FC100-PRSJ-NK-5

SMA Internal Threaded Hole to N-type Female Socket

For any special requirements regarding the interface and length, please contact us for customization!
