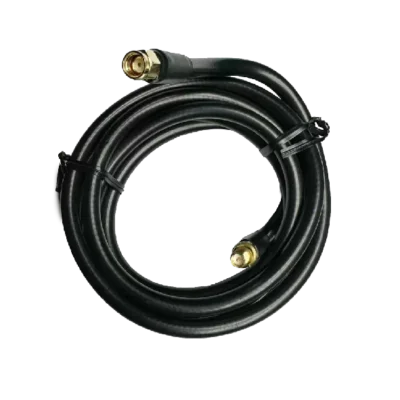

GP-FC200-RPSJ-RPSK-5<br>Feeder Extension Cable

GP-FC200-RPSJ-RPSK-5
Feeder Extension Cable

  • RPSJ to RPSK extension cable
  • Ultra-low loss
  • Low transmission delay
  • Polyethylene foam insulation
  • Minimum attenuation
Introduction
The GP-FC200-RPSJ-RPSK-5 Series is a low-loss feeder extension cable from GPSENKE, it is build for harsh industrial environments. Featuring RPSJ to RPSK connectors, it ensures ultra-low signal loss and latency with foamed polyethylene insulation.

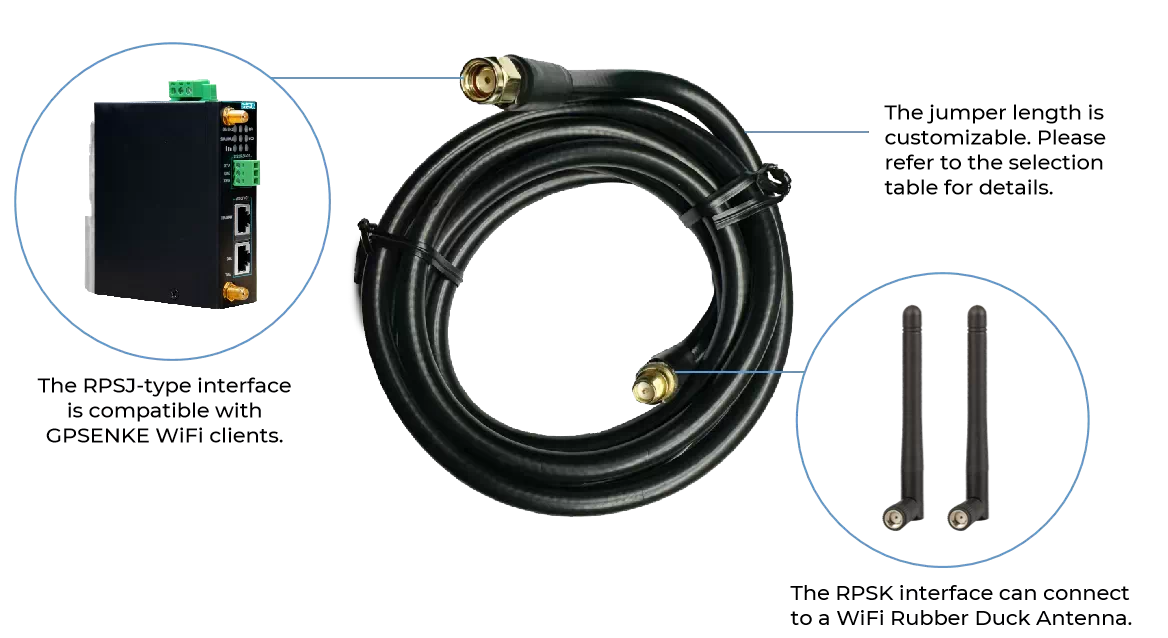

The GP-FC200-RPSJ-RPSK-5 Series is designed for compatibility with GPSENKE wireless client devices and industrial-grade WiFi antennas, it’s ideal for smart warehousing, smart factories, vehicle communications and etc application Scenario.

Technical Parameter

Electrical Factor

DC Resistance

Inner Conductor 6.92 Ω/km

Wind Resistance Capability

Outer Conductor 10.50 Ω/km

Insulation Resistance

5000 MΩ*km

Dielectric Strength

1.6KV

Rate

82%

Characteristic Impedance

50±2

VSWR at 2000 MHz

≤ 1.2

Sheath Withstand Voltage

2500V（DC）

Spark Test Voltage

5000V（DC）

Capacitance

81pF/m

Maximum Attenuation dB/100m

2000MHz

32.3

2100MHz

33.6

2400MHz

42.9

3000MHz

48.6

Mechanical Performance

Inner Conductor

1.8mm

Insulation

5.0mm

Outer Conductor

5.7mm

Sheath

7.5mm

Port

RPSJ to RPSK

Length

Please refer to the selection table for details.

Model Selection

Model

RPSJ Female Threaded Hole to

RPSK Male Threaded Pin

Length

GP-FC100-RPSJ-RPSK-5

FC100 1m

GP-FC200-RPSJ-RPSK-5

FC200 2m

GP-FC500-RPSJ-RPSK-5

FC500 5m

For any special requirements regarding the interface and length, please contact us for customization!
