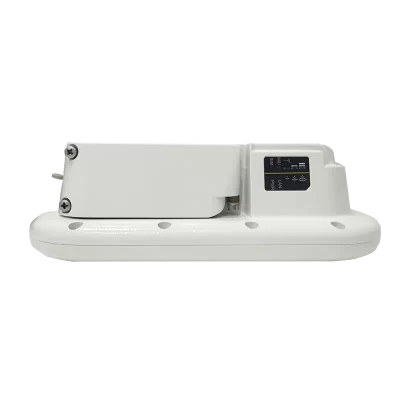

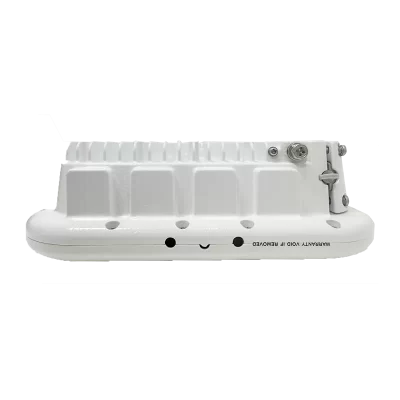

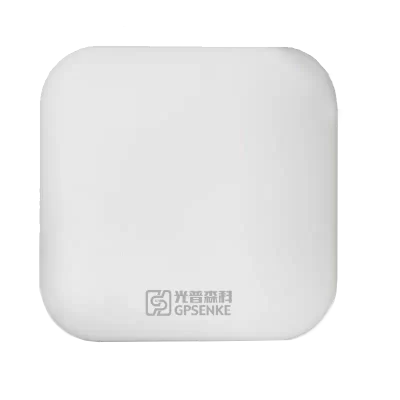

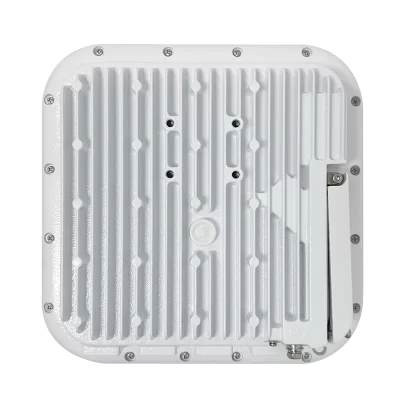

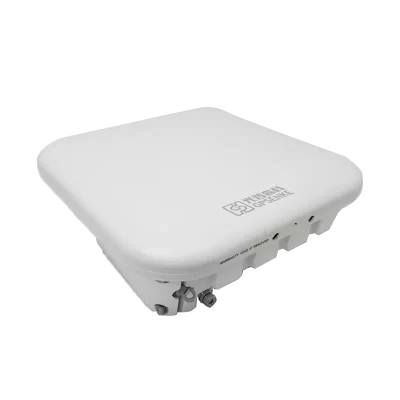

GP-OR610-W Series
Private Network 5G CPE

  • Support 5G SA/NSA dual-mode
  • NR bands :N1/N3/N5/N8/N28/N41/N78/N79
  • LTE fallback : B1/B3/B5/B8/B34/B38/B39/B40/B41
  • Up to 3500 Mbps downlink in NSA mode
  • Up to 555 Mbps uplink in NSA mode
  • IP67 Protection Level
  • -40°C to 55°C Operating temperature

Introduction

GP-OR610-W Series is a high-performance, low-latency industrial 5G outdoor private network CPE from GPSENKE. It supports both 5G SA and NSA modes per 3GPP Release 16, offering fast speeds, high capacity, and low latency. Compatible with 5G Sub-6GHz bands and LTE fallback, it works seamlessly with GPSENKE private network base stations for end-to-end connectivity.

GP-OR610-W Series private network 5G CPE features gigabit Ethernet and WiFi 6, it supports 256QAM modulation. In NSA mode, downlink speeds reach up to 3500 Mbps and uplink 555 Mbps. GP-OR610-W Series is the ideal for industries like industrial parks, mining, energy, power, transportation, and telemedicine that require stable, high-speed wireless private networks. .

Features

  • Support 5G SA/NSA dual-mode for flexible private network deployment
  • Support NR bands :N1/N3/N5/N8/N28/N41/N78/N79
  • Support LTE fallback : B1/B3/B5/B8/B34/B38/B39/B40/B41
  • Up to 3500 Mbps downlink and 555 Mbps uplink in NSA mode
  • 256QAM modulation for improved speed and spectrum efficiency
  • Built-in high-gain dual-polarized directional antenna for strong NLOS coverage
  • Support Local/remote Web GUI management, Support TR-069
  • Support Cell lock, SIM lock, and PIN lock for enhanced network security
  • Support Wall and pole mounting options for diverse outdoor deployment needs
  • Support optional transparent bridging mode for Layer 2 network setup

Paramaters

Technical Parameters

Standard

3GPP Release16

Mode

TDD/FDD

Channel Bandwidth

NR: 5~100 MHz

LTE: 100 MHz as maximum aggravated bandwidth (5 CC)

EN-DC: 80+100 MHz (4 DL + FR1)

Frequency Bands

SA NR ： N1/N3/N5/N8/N28/N41/N78/N79

NSA NR ：N41/N78/N79

LTE TDD ：B34/B38/B39/B40/B41

LTE FDD ：B1/B3/B5/B8

(*For other frequency bands, please contact GPSENKE!)

Multiplexing

DL 4x4 MIMO, UL 2x2MIMO

Security

Firewall: IP/MAC/URL filter; ACL rule

Performances

Peak Rate

DL (Mbps)

UL (Mbps)

NR SA

Max. 2500

Max. 900

NR NSA

Max. 3500

Max. 555

LTE

Max. 1600

Max. 211

Modulation

DL: QPSK, 16QAM, 64QAM, 256QAM

UL: QPSK, 16QAM, 64QAM, 256QAM

Carrier Aggregation

LTE DL/UL: Max. 5CA / Max. 4CA

ENDC DL/UL: LTE 5CA + NR 1CA / LTE 3CA + NR 1CA

NR SA DL/UL: 2CA* / 1CA

Transmit Power

Power Class 3 (23dBm±1.5dBm) for LTE Bands

Power Class 3 (23dBm±1.5dBm) for NR Bands

Power Class 2 (26dBm±1.5dBm) for B41/B48*/N41/N48*/N77

Receive Sensitivity

N41 (100MHz), -85dBm

N48 (20MHz), -94dBm

N77 (100MHz), -86dBm

Link Budget

Antenna type

Build-in Antenna，2T4R

Antenna gain

NR0/NR1/NR2/NR3/NR6：700-960MHz：2 dB

Other Band：8dBi

Max. transmit power

26dBm (combined, to regional EIRP limit)

Max. EIRP

31dBm~40dBm

WiFi Parameters

WLAN/Alignment

IEEE 802.11b/g/n/ax

Standard

20MHz,40MHz,80 MHz

Channel Bandwidth

2.4 GHz, 5GHz, 6GHz*

Frequency

2x2

MIMO

802.11ax: 567 + 1200 Mbps

Peak Rate

DSSS/CCK, OFDM

Modulation

802.11b BW20 : -99.5dBm (1M), -91dBm (11M)

802.11g BW20 : -96dBm (6M), -78dBm (54M)

802.11n: HT20 : -95.5dBm (MCS0), -75dBm (MCS7)

802.11n: HT40 : -93dBm (MCS0), -72dBm (MCS7)

802.11ac: VHT20: -95.5dBm (MCS0), -71dBm (MCS9)

802.11ac: VHT40: -93dBm (MCS0), -69dBm (MCS9)

802.11ax: HE20: -95.5dBm (MCS0), -65.5dBm (MCS11)

802.11ax: HE40: -93dBm (MCS0), -63dBm (MCS11)

Receive Sensitivity

24 dBm * 2 + 24 dBm * 2

Max Output Power

512

Software Parameters

Software Parameters

NAT or Bridge

SIM

PIN management, SIM lock

Network Connection

Auto or manual

LTE Scan Mode

Full band scan or frequency lock

VPN

L2TP L2/L3, GRE L2/L3

NAT

Port forwarding, port trigger, DMZ, ALG

Diagnostics

TCP dump, ping, traceroute

Statistics

LTE status; connection/system up time; device status; DHCP client list; Wi-Fi station list; firewall status

Maintenance

Date and time setting; reboot; restore factory settings; restore or back up configuration file; firmware upgrade locally or OTA

CBRS

Automatic installation of CBSD certificate*

Hardware Parameters

Size

248 mm x 248 mm x 80 mm

Weight

≈2 kg

Port

Ethernet

1 x RJ-45 port, 10/100/1000 Mbps, auto-negotiation, auto MDX, PoE

Protocol

IPv4/IPV6、UDP、TCP、IP、ICMP、SNMPv2c、SNMPv3c、

HTTPS、 SSH、TELNET、TR069、TR104、CBSD

Management

Web GUI、ACS、OMC、SNMP

VLAN

802.1Q

Antenna

Built-in directional antenna Support external N-type female connector for Wi-Fi antennas (WLAN only)

USIM

1.8V/3V 2FF

Reset

Press and hold for 10 seconds to restore the CPE to factory settings.

LED indicator

MIU、LTE、SIM、LAN、PWR、LTE Signal

Power Supply

With PoE Adapter: Input: 100–240VAC Output: 24VDC 1A

Operating Temperature

-40°F ~ 131°F / -40°C ~ 55°C

Storage Temperature

-40°F ~ 158°F / -40°C ~ 70°C

Humidity

5%–95% (non-condensing)

Consumption

<24 W

IP Protection Level

IP67

Model Selection

Model Selection

Model

GP-OR610-W

*For other options,

please contact GPSENKE!

5G Sub-6

N1/N3/N5/N8/N28/N41/N78/N79

LTE FDD/TDD

FDD: B1/3/5/8 TDD: B34/B38/B39/B40/B41

Antenna

FDD: B1/3/5/8 TDD: B34/B38/B39/B40/B41

Support external omni/directional antennas

Supported Frequency Band

N1 (UL:1920 MHz - 1980 MHz)(DL:2110 MHz - 2170 MHz)

N2 (UL:1850 MHz - 1910 MHz)(DL:1930 MHz - 1990 MHz)

N3 (UL:1710 MHz - 1785 MHz)(DL:1805 MHz - 1880 MHz)

N5 (UL:824 MHz - 849 MHz)(DL:869 MHz - 894 MHz)

N7 (UL:2500 MHz - 2570 MHz)(DL:2620 MHz - 2690 MHz)

N8 (UL:880 MHz - 915 MHz)(DL:925 MHz - 960 MHz)

N12 (UL:699 MHz - 716 MHz)(DL:729 MHz - 746 MHz)

N13 (UL:777MHz - 787MHz)(DL:746MHz - 756MHz)

N14 (UL:788 MHz - 798 MHz)(DL:758 MHz - 768 MHz)

N18 (UL:815MHz - 830MHz)(DL:860MHz - 875MHz)

N20 (UL:832 MHz - 862 MHz)(DL:791 MHz - 821 MHz)

N25 (UL:1850 MHz - 1915 MHz)(DL:1930 MHz - 1995 MHz)

N26 (UL:814MHz - 849MHz)(DL:859MHz - 894MHz)

N28 (UL:703 MHz - 748 MHz)(DL:758 MHz - 803 MHz)

N29 (DL:717MHz - 728MHz)

N30 (UL:2305 MHz - 2315 MHz)(DL:2350 MHz - 2360 MHz)

N38 (2570 MHz - 2620 MHz)

N40 (2300 MHz - 2400 MHz)

N41 (2496 MHz - 2690 MHz)

N48 (3550 MHz - 3700 MHz)

N66 (UL:1710 MHz - 1780 MHz)(DL:2110 MHz - 2200 MHz)

N70 (UL:1695 MHz - 1710 MHz)(DL:1995 MHz - 2020 MHz)

N71 (UL:663 MHz - 698 MHz)(DL:617MHz - 652 MHz)

N75 (DL:1432 MHz - 1517MHz)

N76 (DL:1427 MHz - 1432 MHz)

N77 (3300 MHz - 4200 MHz)

N78 (3300 MHz - 3800 MHz)

N79 (4400MHz - 5000MHz)

B1 (UL:1920 MHz - 1980 MHz)(DL:2110 MHz - 2170 MHz)

B2 (UL:1850 MHz - 1910 MHz)(DL:1930 MHz - 1990 MHz)

B3 (UL:1710 MHz - 1785 MHz)(DL:1805 MHz - 1880 MHz)

B4 (UL:1710 MHz - 1755 MHz)(DL:2110 MHz - 2155 MHz)

B5 (UL:824 MHz - 849 MHz)(DL:869 MHz - 894 MHz)

B7 (UL:2500 MHz - 2570 MHz)(DL:2620 MHz - 2690 MHz)

B8 (UL:880 MHz - 915 MHz)(DL:925 MHz - 960 MHz)

B12 (UL:699 MHz - 716 MHz)(DL:729 MHz - 746 MHz)

B13 (UL:777 MHz - 787 MHz)(DL:746 MHz - 756 MHz)

B14 (UL:788 MHz - 798 MHz)(DL:758 MHz - 768 MHz)

B17 (UL:704MHz - 716MHz)(DL:734MHz - 746MHz)

B18 (UL:815MHz - 830MHz)(DL:860MHz - 875MHz)

B19(UL:830MHz - 845MHz)(DL:875MHz - 890MHz)

B20 (UL:832 MHz - 862 MHz)(DL:791 MHz - 821 MHz)

B25 (UL:1850 MHz - 1915MHz)(DL:1930 MHz - 1995 MHz)

B26 (UL:814MHz - 849MHz)(DL:859MHz - 894 MHz)

B28 (UL:703 MHz - 748 MHz)(DL:758 MHz - 803 MHz)

B29 (DL:717 MHz - 728 MHz)

B30 (UL:2305 MHz - 2315 MHz)(DL:2350 MHz - 2360 MHz)

B32 (DL:1452 MHz - 1496 MHz)

B34 (2010MHz - 2025MHz)

B38 (2570 MHz - 2620 MHz)

B39 (1880 MHz - 1920 MHz)

B40 (2300 MHz - 2400 MHz)

B41 (2496 MHz - 2690 MHz)

B42 (3400 MHz - 3600 MHz)

B43 (3600 MHz - 3800 MHz)

B46 (5150 MHz - 5925 MHz)

B48 (3550 MHz - 3700 MHz)

B66 (UL:1710 MHz - 1780 MHz)(DL:2110 MHz - 2200 MHz)

B71 (UL:663 MHz - 698 MHz)(DL:617 MHz - 652 MHz)

*For frequency band inquiries, please contact GPSENKE for detailed communication.
