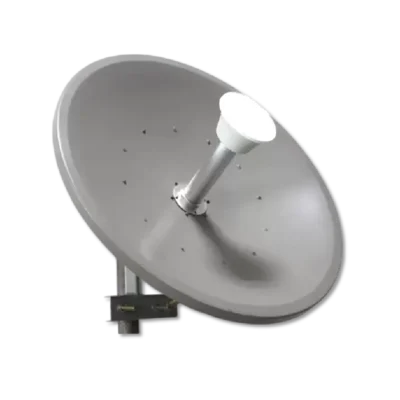

GP-P5836-2NK Series
Dish Antenna 5GHz 36dBi

  • Support 5 GHz frequency band
  • Support 50Ω impedance
  • Support Horizontal & Vertical polarization
  • Support 36dBi gain
Introduction
The GPSENKE GP-P5836-2NK 5GHz 36dBi Dual Polarized Parabolic Dish Antenna features a robust 1200mm aluminum reflector with a weather-resistant powder-coated finish, designed for wideband operation in the 5GHz frequency range. Equipped with 2 N-Female connectors and supporting both vertical and horizontal polarization, it ensures high-performance, long-distance point-to-point wireless communication. The antenna is engineered to withstand extreme environmental conditions and comes with an adjustable mounting bracket for easy alignment in both azimuth and elevation, making it an ideal solution for outdoor backhaul links in demanding industrial or telecom applications.

Technical Parameter

Electrical Factor

Frenquency range

4950-5850MHz

F/B Ratio

≥40dB

VSWR

≤1.5,Max 2.0

Gain

2x36dBi

Radiation

Direction

Horizontal Beam width

3 °

Vertical Beam width

3 °

Polarization

Horizontal & Vertical

Lightning Protection

DC Grounded

Maximum Input Power

100W

Impedance

50Ώ

Mechanical Performance

Connector

2 x N Female

Material

Aluminium alloy

Mount

Pole

Rated Wind Velocity

60m/s

Diameter of Installation Pole

Ø50~70mm

Dimension (mm)

Φ1200mm

Weight

25kg

Working temperature

-40℃ ~ 60℃

Working Humidity

0%~100%( Non-Condensation )

Installation Method

External Install (Mounting Fixture)
