Introduction

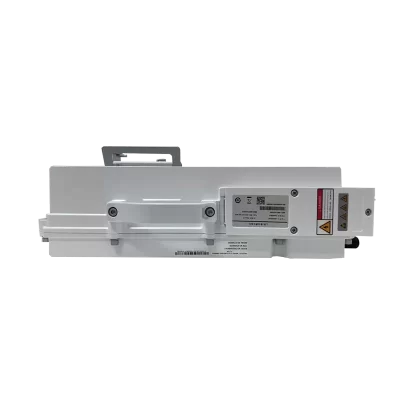

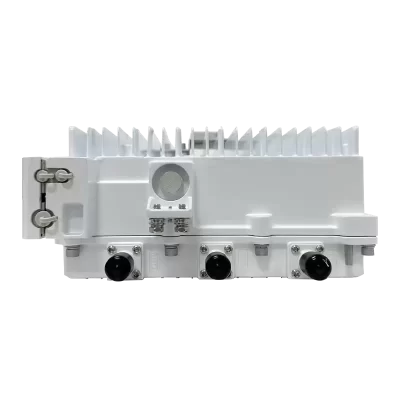

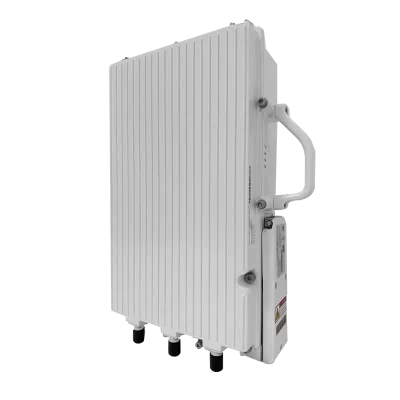

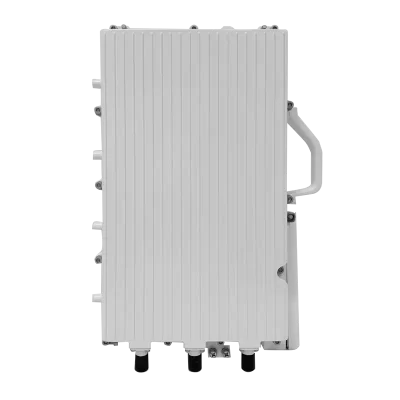

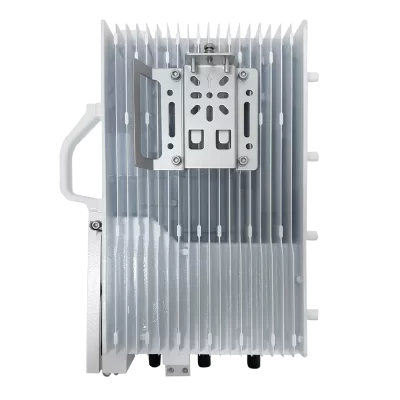

GP-PBS1000-LTE Series is a high-performance, industrial-grade LTE FDD private base station designed for outdoor deployment. It supports multiple frequency bands and flexible bandwidths (5/10/15/20 MHz), with downlink speeds up to 195 Mbps and uplink up to 71 Mbps. The device integrates high-gain antenna support, GPS sync, IP backhaul, and SON features for plug-and-play deployment.
GP-PBS1000-LTE Series complies with IP67 waterproof and dustproof standards, and is tested for operating temperature, surge protection, voltage input, and vibration resistance. It is ideal for industrial private wireless networks in sectors such as oil & gas, mining, metallurgy, power, transportation, emergency response, and smart industrial parks.
Features
Network Feature
- Support LTE : B1/B3/B5/B7/B8/B20/B28
- Support bandwidth: 5/10/15/20 MHz
- Max data rate: 195 Mbps DL at 20 MHz
- Max data rate: 71 Mbps UL at 20 MHz
- Up to 1024 RRC connected users
- Provides excellent NLOS coverage
- Support S1 interface aggregation
- Support local traffic offload with eGW for user billing
Easy Deployment
- Support external high-gain antennas
- High transmit power for wider coverage
- IP backhaul including public transmission
- GPS synchronization supported
- Low power consumption, reduces OPEX
- SON-based plug-and-play
- Interoperable with standard EPC
Management & Security
- GUI-based local and remote management
- Compatible with NMS for unified configuration, monitoring, and maintenance
- Supports TR-069 protocol for third-party network management integration
- Enhanced security with advanced authentication to prevent external attacks
- Support remote software upgrades for feature expansion and performance optimization
