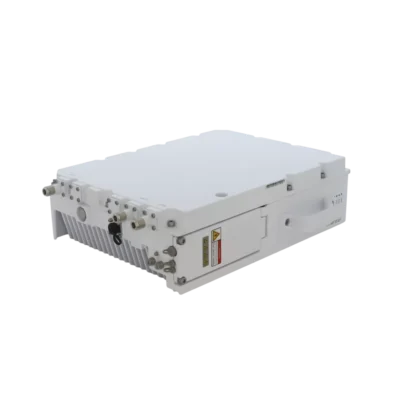

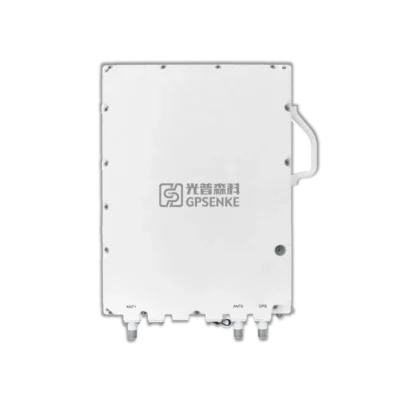

GP-PBS5000-TDD Series
5G TDD Private Base Station

  • Support NR FR1 n40, n41, n78 Band
  • Max data rate: 850 Mbps Downlink
  • Max data rate: 660 Mbps Uplink
  • Support 40VDC ~ 57VDC
  • IP67 Protection Level
  • -40°C to 55°C Operating temperature
Introduction
GP-PBS5000-TDD Series is a high-performance, industrial-grade 5G TDD private base station designed for outdoor deployment. It supports multiple frequency bands and flexible bandwidths (n40, n41, n78), with downlink speeds up to 850 Mbps and uplink up to 660 Mbps. The device integrates high-gain antenna support, GPS sync, IP backhaul, and SON features for plug-and-play deployment.
GP-PBS5000-TDD Series complies with IP65 waterproof and dustproof standards, and is tested for operating temperature, surge protection, voltage input, and vibration resistance. It is ideal for industrial private wireless networks in sectors such as oil & gas, mining, metallurgy, power, transportation, emergency response, and smart industrial parks.
Features
  • Support NR FR1 n40, n41, n78 Band
  • Follow 3GPP Release15 & Release 16 rules
  • Max data rate: 850 Mbps Downlink
  • Max data rate: 660 Mbps Uplink
  • Up to 1200 connected users
  • Support F1 * Deploy Support SA Mode
  • Support SCTP Control (IKE SCTP)
  • Support HaloB
  • Support external high-gain antennas
  • High transmit power for wider coverage
  • IP backhaul including public transmission
  • GPS synchronization supported
  • Low power consumption, reduces OPEX
  • SON-based plug-and-play
  • Interoperable with standard EPC
  • GUI-based local and remote management
  • Compatible with NMS for unified configuration, monitoring, and maintenance
  • Supports TR-069 protocol for third-party network management integration
  • Enhanced security with advanced authentication to prevent external attacks
  • Support remote software upgrades for feature expansion and performance optimization

Technical Parameters

Operating mode

5G NR TDD (3GPP R15 & R16)

TDD uplink/downlink configuration

5ms Period (μ=1): DDDDD + DDSUU

5ms Period (μ=1): DDDDD + SUUUU*

2.5ms Dual Period (μ=1): DDDSU + DDSUU

2.5ms Single Period (μ=1): DDDSU*, DSUUU

Operating frequency band （a）

n40 Band

2350MHz–2390MHz

n41 Band

2515MHz–2615MHz

2590 MHz–2690 MHz

2496-2690MHz

n78 Band

3400MHz–3500MHz

3500MHz–3600MHz

3700 MHz–3800 MHz

Operating bandwidth

n40：40MHz ; n41：100MHz ; n78：60/70/100MHz

MIMO

DL 2x2 (DL: 2L, UL: 2L)

Security

Wireless: SNOW 3G / AES-128 / ZUC

Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256)

Maximum Throughput

100MHz

Downlink

Uplink

5ms Period (DDDDD+DDSUU, 6:4:4)

850Mbps

230Mbps

5ms Period (DDDDD+SUUUU, 6:4:4)*

525Mbps

400Mbps

2.5ms Dual Period (DDDSU+DDSUU, 10:2:2)*

720Mbps

330Mbps

2.5ms Single Period (DDDSU, 10:2:2)*

850Mbps

230Mbps

2.5ms Single Period (DSUUU, 10:2:2)

380Mbps

660Mbps

Service Capability

Up to 1200 users

Maximum Coverage Area

5 km (Distance)

Latency

Round-trip Delay (RTD) less than 10 ms

Receiver Sensitivity （b）

-95 dBm (per channel)

Modulation Scheme

Uplink: MCS0 (QPSK) ~ MCS27 (256QAM)

Downlink: MCS0 (QPSK) ~ MCS27 (256QAM)

Transmit Power

37 dBm ~ 46 dBm (single channel, total two channels)

Scheduling Method

3GPP Standard 5QI (5G QoS Indicator)

ARQ/HARQ

Support

Synchronization Method

GPS

a: Different models support different frequency bands.

b: Receive sensitivity is measured according to the testing method recommended by 3GPP TS 36.104,

based on a 5 MHz bandwidth and receive sensitivity measured for FRC A1-3 in Annex A.1 (QPSK, R=1/3,

25RB) standard

*: Support in upcoming versions.


Hardware Parameters

Protocol

IPv4/IPv6, UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, DHCP

Management

IPv4/IPv6, HTTP/HTTPs, TR-069, SSH, Embedded 5GC

Interface

1*1GE SFP + 1*10G SFP+

VLAN/VxLAN*

802.IQ/VxLAN

RF Antenna

External high-gain antenna (N-Type Port)

GPS Antenna

External GPS Antenna (N-Type Port)

Power Supply

40VDC ~ 57VDC, nominal 48VDC

Power consumption

Max. consumption < 360W

LED indicator

5*LED status indicators: PWR / RUN / ACT / ALM / OPT0 / OPT1

Operating Temperature

-40ºC to 55ºC

Storage Temperature

-45ºC to 70ºC

Humidity

Humidity: 0%–95% (non-condensing)

Dimensions

420mm x 315mm x 123mm

Weight

≈ 15.5kg

Installation method

Pole or wall mounting

IP protection rating

IP65

Air pressure

70 kPa ~ 106 kPa

Lightning Protection

Power Port: Differential mode: ±10 kA ; Common mode: ±20 kA

Surge Protection

Power Port: Differential mode: 2 kA ; Common mode: 4 kA

MTBF

≥ 150000 Hour

MTTR

≤ 1 Hour

*: Support in upcoming versions

Model Selection

Model

GP-PBS5000-TDD

Working Band

n78(3400MHz-3500MHz)

Please select the required frequency band!

n78(3500MHz-3600MHz)

n78(3700MHz-3800MHz)

n40(2350MHz-2390MHz)

n41(2515MHz-2615MHz)

n41(2590MHz-2690MHz)

1*1GE SFP+1*10GE SFP+

Antenna

External high-gain antenna

Power

DC48V

For other options, please contact GPSENKE!
