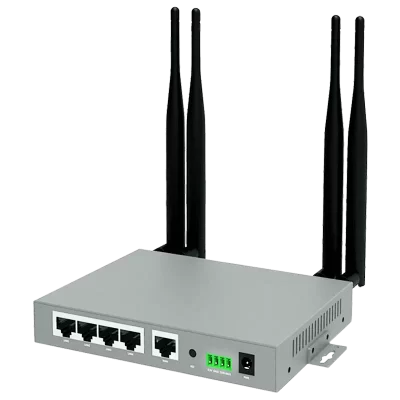

GP-R550 Series
Industrial 4G LTE

  • Support 4LAN+1WAN
  • Support Single SIM/Dual SIM
  • Support RS232/485
  • WiFi Function Optional
  • Support +7.5V~+32V DC
  • IP40 (Can be designed up to IP51)
  • -40 °C ~+80°C operation temperature

Introduction

GP-R550 series is an industrial-grade 4G WiFi router with high-adaptability, high-reliability and high-stability. It supports FDD-LTE,TDD-LTE,WCDMA(HSPA+), CDMA2000(EVDO), TD-Scdma 3G/4G mobile network. GP-R550 series provid 4*Gigabit LAN ports, 1*Gigabit WAN port, 1*485/232 and WIFI interface. GP-R550 series industrial 4G WiFi router widely used in finance, postal, smart grid, charging piles, self-service equipment, intelligent transportation, environmental monitoring, fire monitoring, security monitoring, water conservancy monitoring, public safety, advertising, industrial control, seismic monitoring, meteorological monitoring, instrument monitoring and other industries.

Features

Industrial Design

  • Adopt High-performance industrial-grade 4G module
  • Adopt high-performance industrial-grade 32bit MIPS Processor
  • Power supply: +7.5V~+32V DC
  • Adopt sheet metal cold-rolled steel shell, which has strong heat dissipation
  • Protection Level : IP40 (Can be designed up to IP51)

Platform Manage

  • Support Online Monitoring
  • Support Remote Parameter Backup
  • Support Remote Parameter Configuration
  • Support Remote Device Upgrades
  • Support Remote Reboot and Log Query

Network Feature

  • Support Port Traffic Detection
  • Support Real-time Link Monitoring
  • Support serial port DTU function
  • Support MQTT Protocol/Modbus protocol
  • Support GPS Positioning (optional function)
  • Support Port forwarding, DMZ, and static NAT

Network Function

  • Support 4G network and backward compatible with 3G/2G
  • Support Dual-Modular/Dual-SIM load balancing, link backup, link aggregation
  • Support WiFi IEEE802.11b/g/n protocol
  • Support standard RS-232/485 serial port and supports serial port DTU
  • Support hardware WDT and provide anti-drop mechanism
  • Support multiple VPN protocols
  • Support DHCP, DDNS, firewall, NAT, and DMZ host functions
  • Support ICMP, TCP, UDP, Telnet, SSH, FTP, HTTP, HTTPS, Modbus and etc Network function
  • Support SNMP Management Protocol Support Reboot

Stable & Reliable

  • ESD protection for all interfaces to prevent electrostatic shocks
  • Multiple device self-test mechanisms ensure smooth links and alarms
  • upport network signal strength indicator display in three levels
  • Adopt software and hardware watchdog and multi-level link detection mechanism
  • Support automatic fault detection and automatic recovery to ensure the stable and reliable operation of the equipment.

Paramaters

Software Parameter

Function

Working Mode

Wired/Wireless/Compatible Mode

WiFi

AP/ Client Mode

Router

Support PPPOE/ staticIP/ dynamicIP

Serial Server

Support DTU Transmission

Support TCPserve/TCPclient

Support UDP

Support Modbus Protocol

VPN

GRE, PPTP, L2TP, IPSec, EOIP, openVPN, N2N

Management

Local Deploy/Remote Deploy

Extended Function

Support GPS Positioning【Optional】

Support internal storage expansion，2GB-32GB【Optional】

4G

Wireless Module

Industrial-grade 4G module

Frequency

FDD-LTE（Band1/3/5丨B1/3/5/7/8/20丨B2/4/5/12/13/17/25/26）

TDD-LTE（Band38、Band39、Band40、Band41）

HSPA（850/900/1900/2100MHz

GSM850/900/1800/1900MHz

EV-DO（800MHz）

TD-Scdma（Band34、Band39）

Theoretical Bandwidth

FDD/TDD LTE: UL 50Mbps/DL 100Mbps

HSPA+: UL 5.76Mbps/DL 21Mbps

EVDO：UL 1.8Mbps/DL 3.1Mbps

Receiving Sensitivity

<-109dBm

WiFi

Frequency

Support IEEE802.11 b/g/n

Rate

150Mbps/300Mbps（Optional）

Max Users

64+

Security Encryption

Support WEP, WPA, WPA2 and other encryption methods

Transmit Power

16-17dBm（11g），18-20dBm（11b）15dBm(11n)

Receiving Sensitivity

<-72dBm@54Mpbs

GPS

Optional

Hardware Parameter

Size

152mm×104mm×25mm

Weight

425g

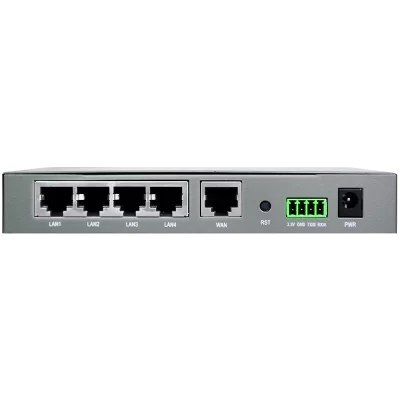

Port

WAN

1 x 1000M Eth port, Auto adapt MDI/MDIX, Built in 1.5KV ESD

LAN

4x 1000M Eth port, Auto adapt MDI/MDIX, Built in 1.5KV ESD

Serial Server

Support RS-232/RS485（Default RS-232）

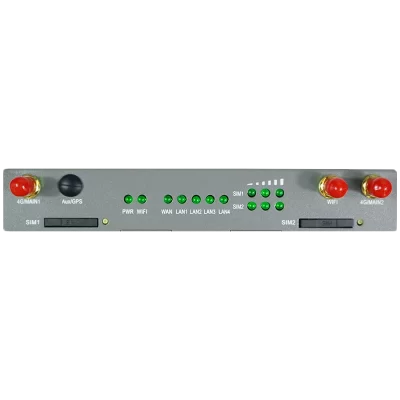

Indicator

1דPWR” 1דWiFi”

1דWAN” 4דLAN”

3דSignal”

Antenna

2× SMA Female Antenna（3G/4G Antenna Port）

2 × SMA Female WiFi Antenna Port

GPS：Optional

SIM/UIM

Standard Drawer Type(1/2 x SIM slot)

1.8V/3V SIM/UIM,15KV ESD protection

Reset Button

1×Reset Button

CPU

550MHz Dual-Core

FLASH

16MB

RAM

64MB

Working/Storage Temperature

-40ºC ～ 80ºC/-45ºC ～ 85ºC

Working/Storage Humidity

5%~95%( non-Condensation )

IP Protection

IP40 Protection,Electromagnetic shielding, windproof, sunproof, shockproof and heat dissipation design

Power

DC7.5V~32V（Standard： DC12V/1.5A

Built-in power supply instantaneous overvoltage protection

Model Selection

Model Selection

GP-R550 Single-SIM Series

Model

GP-R550-232

GP-R550-485

GP-R550-W-232

GP-R550-W-485

WiFi

-

-

●

●

FDD-LTE

●

●

●

●

TDD-LTE

●

●

●

●

RS232

●

-

●

○

RS485

-

●

-

●

GP-R550-D Dual-SIM Series

Model

GP-R550-D-232

GP-R550-D-485

GP-R550-D-W-232

GP-R550-D-W-485

WiFi

-

-

●

●

FDD-LTE

●

●

●

●

TDD-LTE

●

●

●

●

RS232

●

-

●

-

RS485

-

●

-

●
