Introduction

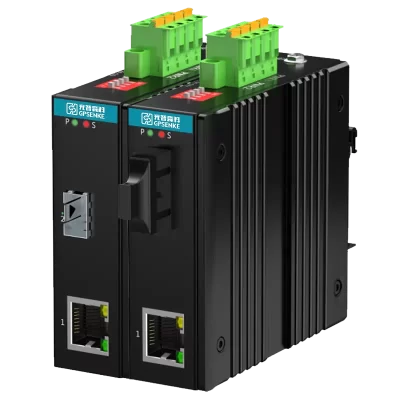

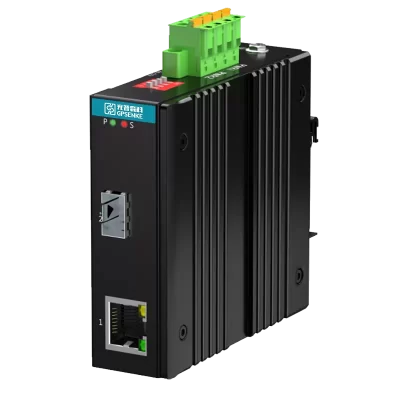

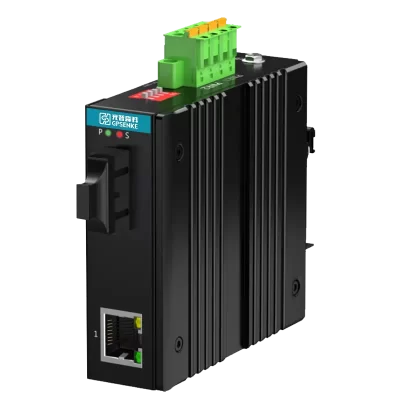

The GPAM200-R 1+1 series is an industrial-grade unmanaged media converter featuring 1 * 10/100 Base-T ETH + 1* 100 Base-FX SFP/SC(optional) fiber ports. It supports dual DC 12-58V power input, with over-current and reverse polarity protection , ensuring stable operation in case of power issues. It features LFP, flow control,broadcast storm suppression and 10K Byte Jumbo Frames, all of which can be controlled via DIP switches to meet user needs. The GPAM200-R 1+1 series operates in extreme temperatures from -40°C to 75°C and is designed for tough environments. It includes 4KV surge protection, 8KV electrostatic protection, and 15KV air electrostatic protection. With a fanless DIN rail design and IP40 rating, it is ideal for industrial applications like highways, railways, smart cities, and smart energy, ensuring reliable performance in harsh conditions.
Features
- Support 1* 10/100 Base-T RJ45 Ethernet Port
- Support 1* 100Base-FX SFP/SC(Optional) Fiber Port
- Support DC 12-58V Redundant Dual Power Input
- Support over-current protection and reverse polarity protection
- Support LFP/Flow Control/Broadcast Storm Suppression/Fiber Port Speed Switch
- 4kV surge protection, 8kV electrostatic protection, 15kV air electrostatic protection
- High EMC/EMI Ratings and capable in complex electromagnetic environments
- IP40 protection rating, fanless DIN rail mount design
- Operating temperature range: -40°C to 75°C
