GPEM2010G-PN Series
2+8 Port Managed PN Switch

  • Support 8 * 10/100/1000Base-TX RJ45 Ethernet ports
  • Support 2*1000Base-X SFP Fiber ports
  • Support DC12~36v power edundant power supply
  • Support reverse/over current protection
  • Support PI(PROFIBUS International) standard
  • Support PROFINET (PN) RT level
  • Support Ring networking with PLCs Compatible with Siemens’ TIA Portal software.
  • Support G.8032 ERPS protocol, recovery time ≤50ms
  • Support Class A EMI Protection
  • Support IP40 fan-less and Din-rail hardware design
  • Support -40 °C ~+75°C operation temperature

Introduction

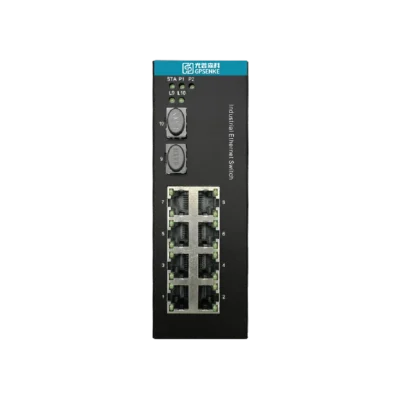

The GPEM2010G-PN series is a high-performance fully managed industrial Ethernet switch, offering 8 x 10/100/1000 Base-TX Ethernet ports and 2 x 1000Base-X SFP fiber ports. The ERPS self-healing time ≤ 50ms, and it support VLAN/QoS、VLAN、IGMP Snooping、IGMP v1/v2/v3 (IGMP snooping)、LLDP、SNMP v1/v2/v3、RMON、ACL、PVLAN those usual LAY-2 managed function.

The GPEM2010G-PN series support DC 12~36v dual-power, provide reverse protection and over current protection. It operates in -40°C ~ 75°C temperatures, has high EMC/EMI level, and can work stably in complex electromagnetic environments. With its rugged design and high reliability, the GPEM2010G-PN series is ideal for use in demanding environments for new energy energy, electrical power plant, intelligent transportation, and video surveillance, offering a secure and dependable solution for large LAN deployments.

Features

  • Support 8 * 10/100/1000Base-TX RJ45 Ethernet ports
  • Support 2*1000Base-X SFP Fiber ports
  • Support DC12~36v power edundant power supply
  • Support reverse/over current protection
  • Support PI(PROFIBUS International) standard
  • Support PROFINET (PN) RT level
  • Support Ring networking with PLCs Compatible with Siemens’ TIA Portal software.
  • Support VLAN/IGMP/QoS/LLDP/802.1X/DDM/IPV6/Web/SNMP/Telnet/TFTP/Web upgrading
  • Support G.8032 ERPS protocol, recovery time ≤50ms
  • Support Class A EMI Protection
  • Support IP40 fan-less and Din-rail hardware design
  • Support -40 °C ~+75°C operation temperature

Paramaters

Technical Parameter

IEEE Standard

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX & 100Base-FX

IEEE 802.3ab 1000Base-T

IEEE 802.3z 1000Base-X

IEEE 802.3x flow control

IEEE 802.3ad: LACP

IEEE 802.1D: STP (spanning tree protocol)

IEEE 802.1p: COS

IEEE 802.1Q: VLAN tagging

IEEE 802.1w for RSTP (Rapid spanning tree protocol)

IEEE 802.1s for MSTP

IEEE 802.1x authentication network control

IEEE 802.1AB for LLDP

Switch Capacity

28Gbps

Priority Queue

8

MAC

8K

Method

Storage and Forward

Jumbo Frame

Support 9600 bytes

VLAN

4096

Forward Delay

<10μs

Hardware Parameter

Size

48mmx144mmx130mm

Weight

≤1 KG

Port

Ethernet

8*10/100/1000Base-TX RJ45 Ethernet MDI/MDI-X Adaptive

Fiber

2*1000Base-X SFP Port

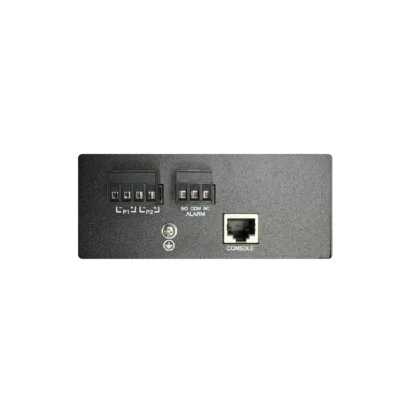

CONLOSE

1* RJ45 Port, RS-232 Controal Line, 115200bps-8-N-1

Power Port

1*4 Pin Phoenix Terminal 5.08mm

Power Input

DC 24V ( DC12~36 V Range Dual Power Supply Redundancy)

Fault Output Alarm

Relay output fault alarm : 1A@24VDC

Consumption

≤15 W

Power Protection

Support dual power supply redundancy

Support reverse connection protection

Support over current protection

LED Indicator

Power Indicator ：PWR

Port Indicator：RJ45 Port（Link/ACT）

Protection level

IP40 Protection Metal Shell

Heat Dissipation

Fanless with natural cooling

Installation

DIN rail mounting / Wall mounting

Working Environment

Working Temperature：-40～75 °C

Storage Temperature：-40～85 °C

Humidity：5%～95%(Non-Condensation）

Model Selection

Accessories Selection(Optional)

SFP Module

Or

1×9 SC Module

1000M single-mode single-fiber LC(SC) / SC port: 20Km, 40Km, 60Km or above

1000M single-mode dual-fiber LC/SC port: 20Km, 40Km, 60Km or above

1000M multi-mode dual-fiber LC/SC port: 550m

Power Adapter

Desktop, Rail Type (Optional)

Model Selection

Model

Ethernet

Fiber

Power

GPEM2010G-PN-2GX8GT-2D2

8*10/100/1000Base-TX RJ45

2*1000Base-X SFP

12~36VDual Power
