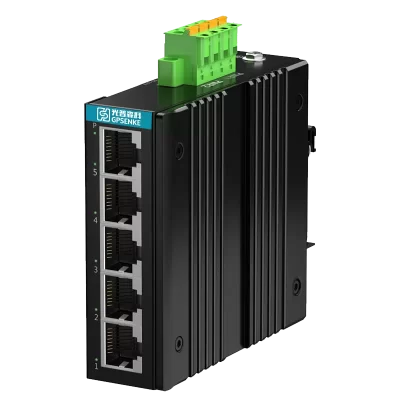

GPLA1005-R Series <br>5*100M/1000M Industrial Unmanaged ETH Switch

GPLA1005-R Series
5*100M/1000M Industrial Unmanaged ETH Switch

  • Support 5* 10/100 Base-T or 5*10/100/1000 Base-T RJ45 Ethernet Ports
  • Support DC 12-36V Redundant Dual Power Input
  • Support over-current protection and reverse polarity protection
  • 4kV surge protection, 8kV electrostatic protection, 15kV air electrostatic protection
  • High EMC/EMI Ratings and capable in complex electromagnetic environments
  • IP40 protection rating, fanless DIN rail mount design
  • Operating temperature range: -40°C to 75°C

Introduction

The GPSENKE GPLA1005-R series is an industrial-grade unmanaged Ethernet switch featuring 5× 10/100M or 5× 10/100/1000M RJ45 Ethernet ports, offering flexible network connectivity options. It supports dual DC 12-36V power input, with over-current and reverse polarity protection , ensuring stable operation in case of power issues.

The GPLA1005-R series operates in extreme temperatures from -40°C to 75°C and is designed for tough environments. It includes 4KV surge protection, 8KV electrostatic protection, and 15KV air electrostatic protection. With a fanless DIN rail design and IP40 rating, it is ideal for industrial applications like highways, railways, smart cities, and smart energy, ensuring reliable performance in harsh conditions.

Features

  • Support 5* 10/100 Base-T or 5*10/100/1000 Base-T RJ45 Ethernet Ports
  • Support DC 12-36V Redundant Dual Power Input
  • Support over-current protection and reverse polarity protection
  • 4kV surge protection, 8kV electrostatic protection, 15kV air electrostatic protection
  • High EMC/EMI Ratings and capable in complex electromagnetic environments
  • IP40 protection rating, fanless DIN rail mount design
  • Operating temperature range: -40°C to 75°C

Paramaters

Technical Parameter

Protocol

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Ethernet

IEEE 802.3ab 1000Base-T Ethernet (*Gigabit)

Switch Capability

100M：1 Gbps

1000M ：14 Gbps

Packet Forwarding

100M ：1.488 Mpps

1000M：20.832 Mpps

MAC

2K

2K

Packet Buffer

2M bit

384K bit

Jumbo Frames

-

9 KBytes

VLAN

Support

 MDX/MIDX

Support

Watchdog

Support

Jumbo Forwarding Delay

<10μs

<5μs

Hardware

RJ45 Ethernet (Optional)

Fast: 5*10/100M Adaptive

Gigabit:5*10/100/1000M Adaptive

Power Interface

1*4 Pin Phoenix Terminal 5.08mm

Input voltage

DC12~36 V Range Dual Power Supply Redundancy

Input Current

Fast: 0.1A Max

Gigabit: 0.3A Max

Power Consumption

Fast:  ≤2W

Gigabit: ≤4W

Power protection

Support dual power supply redundancy

Support reverse connection protection

Support overload protection

LED indicator

Power Indicator ：PWR

Port Indicator：RJ45 Port（Link/ACT）

Protection level

IP40 Protection  Metal Shell

Heat dissipation

Fanless with natural cooling

Installation

DIN rail mounting / Wall mounting

Physical parameters

Weight: 0.35 KG

Size：30 mmx85 mmx85 mm

Working Environmen

Working Temperature：-40～75 °C

Storage Temperature：-40～85 °C

Humidity：5%～95%(Non-Condensation）

Standard Protocol

Standard

Certification

MTBF

Warranty


EMI ：

FCC Part 15 Subpart B Class A，EN 55022 Class A

EMS :

IEC (EN) 61000-4-2 (ESD): IEC 61000-4-2 8KV/15KV

IEC (EN) 61000-4-5 (Surge-Power): IEC 61000-4-5 6KV/4KV ( 8/20us)

IEC (EN) 61000-4-5 (Surge-Ethernet): IEC 61000-4-5 6KV/4KV(10/700us)


Shock ：IEC 60068-2-27

Freefall ：IEC 60068-2-32

Vibration ：IEC 60068-2-6


Certification

CE、RoHS、 ISO9001：2008

MTBF

429,288 Hour ( Telcordia (Bellcore)，GB Standard）

Warranty

5 - Year

Model Selection

Model Selection

Model

Ethernet

Power

GPLA1005-R-5T-2D2

5*10/100 Base-TX RJ45

12~36VDC Dual Power

GPLA1005G-R-5GT-2D2

5*10/100/1000 Base-TX RJ45

12~36VDC Dual Power
