Introduction

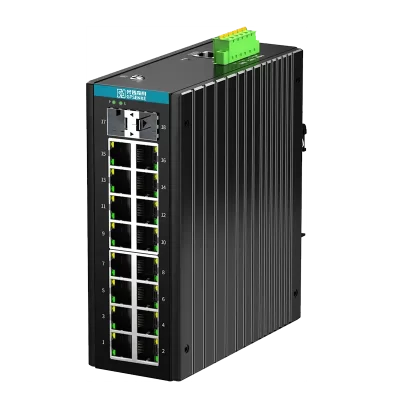

The GPSENKE GPLA1018G-R series is an industrial-grade unmanaged Ethernet switch featuring 16× 10/100/1000M RJ45 Ethernet ports and 2×1000 SFP port. It supports dual DC 12-58V power input, with over-voltage over-current, and reverse polarity protection , ensuring stable operation in case of power issues. It features QoS, port aggregation, flow control, and broadcast storm suppression, all of which can be controlled via DIP switches to meet user needs.
The GPLA1018G-R series operates in extreme temperatures from -40°C to 85°C and is designed for tough environments. It includes 6KV surge protection, 8KV electrostatic protection, and 15KV air electrostatic protection. With a fanless DIN rail design and IP40 rating, it is ideal for industrial applications like highways, railways, smart cities, and smart energy, ensuring reliable performance in harsh conditions.
Features
- Support 16* 10/100/1000 Base-T RJ45 Ethernet and 2*1000 Base-X SFP Slot
- Support DC 12-58V Redundant Dual Power Input
- Support over-current protection and reverse polarity protection
- Support QoS, port aggregation, flow control, and broadcast storm suppression
- 4kV surge protection, 8kV electrostatic protection, 15kV air electrostatic protection
- High EMC/EMI Ratings and capable in complex electromagnetic environments
- IP40 protection rating, fanless DIN rail mount design
- Operating temperature range: -40°C to 85°C
