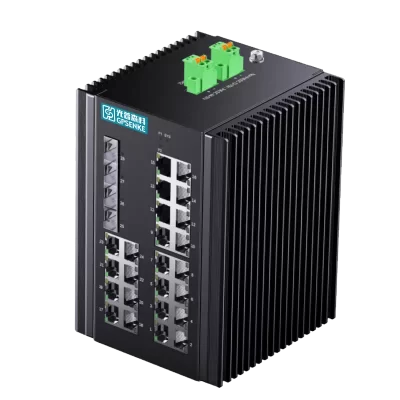

GPLA1028G-R Series <br>4+24 Full Gigabit Industrial Unmanaged ETH Switch

GPLA1028G-R Series
4+24 Full Gigabit Industrial Unmanaged ETH Switch

  • Support 24* 10/100/1000 Base-T RJ45 Ethernet
  • Support 4*1000 Base-X SFP Slot Support
  • DC 12-75V Redundant Dual Power Input
  • Support over-current protection and reverse polarity protection
  • 6kV surge protection, 8kV electrostatic protection, 15kV air electrostatic protection
  • High EMC/EMI Ratings and capable in complex electromagnetic environments
  • IP40 protection rating, fanless DIN rail mount design
  • Operating temperature range: -40°C to 85°C

Introduction

The GPSENKE GPLA1028G-R series is an industrial-grade unmanaged Ethernet switch featuring 24× 10/100/1000M RJ45 Ethernet ports and 4×1000 SFP port. It supports dual DC 12-75V power input, with over-voltage over-current, and reverse polarity protection , ensuring stable operation in case of power issues.

The GPLA1028G-R series operates in extreme temperatures from -40°C to 85°C and is designed for tough environments. It includes 6KV surge protection, 8KV electrostatic protection, and 15KV air electrostatic protection. With a fanless DIN rail design and IP40 rating, it is ideal for industrial applications like highways, railways, smart cities, and smart energy, ensuring reliable performance in harsh conditions.

Features

  • Support 24* 10/100/1000 Base-T RJ45 Ethernet
  • Support 4*1000 Base-X SFP Slot Support
  • DC 12-75V Redundant Dual Power Input
  • Support over-current protection and reverse polarity protection
  • 6kV surge protection, 8kV electrostatic protection, 15kV air electrostatic protection
  • High EMC/EMI Ratings and capable in complex electromagnetic environments
  • IP40 protection rating, fanless DIN rail mount design
  • Operating temperature range: -40°C to 85°C

Paramaters

Technical Parameter

Protocol

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Ethernet

IEEE 802.3ab 1000Base-T Ethernet

IEEE 802.3z 1000Base-X Ethernet

Switch Capability

56Gbps

Packet Forwarding

83.328Mpps

MAC

16K

Packet Buffer

12M bit

Jumbo Frames

10 KBytes

VLAN

Support

 MDX/MIDX

Support

Watchdog

Support

Jumbo Forwarding Delay

<5μs

Hardware

RJ45 Ethernet (Optional)

24* 10/100/1000M RJ45 Ethernet Port, 4*1000Base-X SFP slot

Power Interface

1*2Pin Phoenix Terminal 5.08mm

Alarm Interface

Relay (Pin 5-6), 5.08mm

Input voltage

DC12~75 V Range Dual Power Supply Redundancy

Input Current

Gigabit: 2A Max

Power Consumption

Gigabit: ≤25W

Power protection

Support dual power supply redundancy

Support reverse connection protection

Support overload protection

LED indicator

Power Indicator ：PWR

Port Indicator：RJ45 Port（Link/ACT）

Protection level

IP40 Protection  Metal Shell

Heat dissipation

Fanless with natural cooling

Installation

DIN rail mounting / Wall mounting

Physical parameters

Weight:  1.7 KG

Size：110x158x115 mm

Working Environmen

Working Temperature：-40～85 °C

Storage Temperature：-40～85 °C

Humidity：5%～95%(Non-Condensation）

Standard Protocol

Standard

Certification

MTBF

Warranty


EMI ：

FCC Part 15 Subpart B Class A，EN 55022 Class A

EMS :

IEC (EN) 61000-4-2 (ESD): IEC 61000-4-2 8KV/15KV

IEC (EN) 61000-4-5 (Surge-Power): IEC 61000-4-5 6KV/4KV ( 8/20us)

IEC (EN) 61000-4-5 (Surge-Ethernet): IEC 61000-4-5 6KV/4KV(10/700us)


Shock ：IEC 60068-2-27

Freefall ：IEC 60068-2-32

Vibration ：IEC 60068-2-6


Certification

CE、RoHS、 ISO9001：2008

MTBF

544,421 Hour ( Telcordia (Bellcore)，GB Standard）

Warranty

5 - Year

Model Selection

Model Selection

Model

Ethernet

Fiber

Power

GPLA1028G-R-4GX24GT-2D2

24*10/100/1000 Base-TX RJ45

4*1000Base-X SFP

12~75VDC

Dual Power
